Lift-O-Flex 20500HS Series Portable Lifter
The Lift-O-Flex 20500HS Series offers two attractive options: a durable powder-coated steel finish as standard, or an elegant stainless steel upgrade for those seeking a premium touch. Thanks to its modular design, this equipment can be customized to suit your specific application requirements perfectly.
attachments
EXPAND-O-TURN
Electric core expander for paper and film rolls.

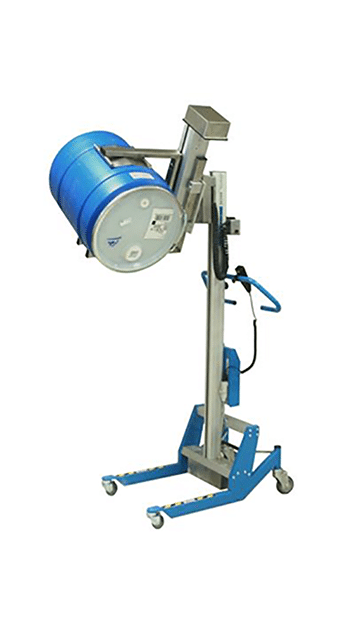

Squeeze-O-Turn
Lifting device to support drum handling and goods requiring rotation.
Lift-O-Turn
End-effector that can be equipped with different arms to handle various products that need rotating.
Vacuum
End-effector that features adjustable magnets allowing lifting of up to 200 lbs.
forks
Fixed or adjustable forks for material handling where space is limited.
Load Platform
Allow operators to handle totes, boxes, roles and pails. Available in standard and custom sizes.

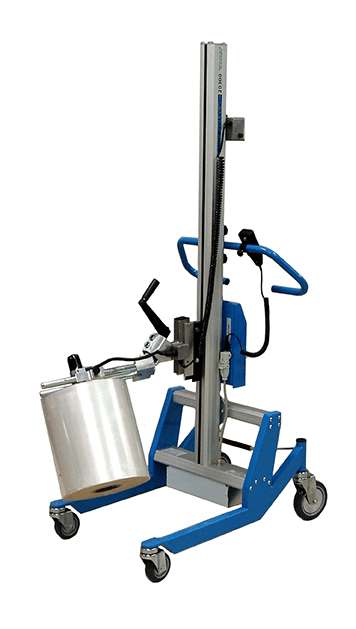

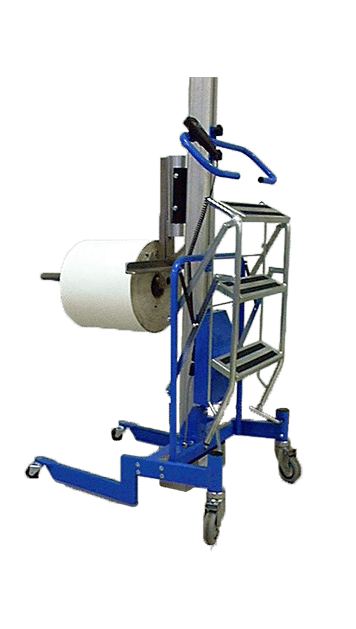

Core Probe
Available in a fixed or wheeled model, used to handle rolls from pick up to drop off.
Custom
We also offer custom solutions to meet your individual needs.
Lift-O-Flex 20500HS Features and Benefits
| Features and Benefits | |
|---|---|
| Anodized Aluminum Profile |
|
| Steel (Powder Coated Paint-Optional SS) |
|
| Standard and Custom Leg Configurations |
|
| Standard and Custom Length Lift Masts | |
| Foot Operated 3-Position Central Brake |
|
| Lift Mast Slip Clutch |
|
| Current Limiting (No Limit Switches) |
|
| Totally Enclosed Lift Mast with Ball Screw |
|
| Electronic Power Pack |
|
| Detachable Remote Controller |
|
| Adjustable Handlebar |
|
Lift-O-Flex 20500HS Specifications
| Floor to top of Mast - Standard Legs | Floor to top of Mast - Low Built Legs | Lift Stroke | ||
|---|---|---|---|---|
| 1732mm (68.1") | 1681MM (66.1") | 1192mm (45.67") | ||
| 1982mm (78.0") | 1931mm (76.0") | 1442mm (55.5") | ||
| 2232mm (87.8") | 2182mm (85.8") | 1692mm (73.2") | ||
| 2432mm (95.7”) | 2381mm (93.7”) | 1892mm (73.2”) | ||
| 2730mm (107.5”) | 2679mm (105.5”) | 2159mm (85.0”) | ||
| SPECIFICATIONS | ||||
|
Minimum Lift Height:
Lift-Speed: Legs-Standard: Legs-Low Profile: Wheel Material: Overall Length Standard/Low Profile: Wheel Diameter (Front/Back) Standard: Wheel Diameter (Front/Back) Low built: Width: Outside: Noise level: Maximum Load: Lifter Weight w/o End-Effector: Battery Type: Battery Voltage: Battery Capacity: Recharge Time: Lifter Finish: |
~40mm (~1.7”)
(5.2”/sec) Std Length 903mm (35.5”)-Long 1103mm (43.5”) Std Length 881mm (34.6”)-Long 1081mm (42.5”) Polyurethane/Rubber Std-904mm (35.5”)/Low Profile 881mm (34.6”) 100mm (3.9”)/150mm (5.9”) 60mm (2.3”)/100mm (3.9”) Std-554mm (21.8”) Wide 964mm (38”) >70dB(A) 130Kg (285-lbs) 38Kg (84-lbs) Lead Gel Cell 24V, 2 Amp 12 AHr 6-8 Hours Powder Coated Paint/Anodized or Stainless Steel/Anodized |
|||
Regulations
| All of our Material Handling solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20. |
