Rack Netting Systems

Factory Supply offers a complete line of Industrial Rack Netting as a cost-effective, engineered solution designed to make warehouses safer for employees and visitors. Our rack netting is installed on the back of storage racking to protect aisle ways, work areas and machinery from products that may become dislodged and fall to the ground below.
Our system has been designed and tested specifically for industrial racking applications. Each custom design utilizes engineered offset and extension brackets, custom-sized netting panels, and load-rated cable systems to adapt to any racking configuration.
What To Expect From OSHA

RackGuard netting panels are treated to meet NFPA 701 standards for fire-retardancy and have been tested and rated in accordance with ANSI A10.11 and OSHA safety standards. This includes the complete system with all of the hardware installed onto a racking system and tests made to simulate a real-case product falls.

Flushmount Rack Netting Systems (RackGuard)

Flushmount RackGuard Netting Systems are designed to protect employees from falling products. The netting of these systems sits flush to the racking system, helping to ensure that no product will fall. Ideal for applications where there is no pallet overhang or product is loaded by hand.
Flushmount RackGuard Netting Installation MH.jpeg
img LFP Standard Offset RackGuard Netting Systems.jpg

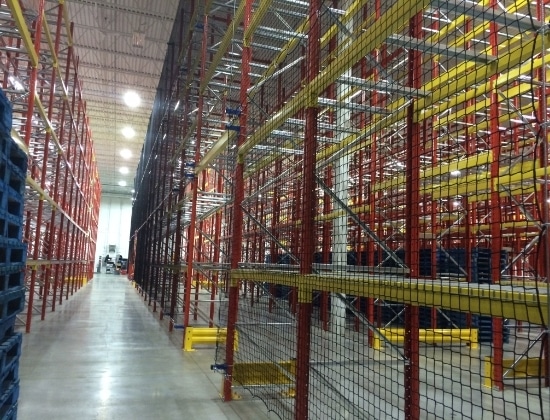

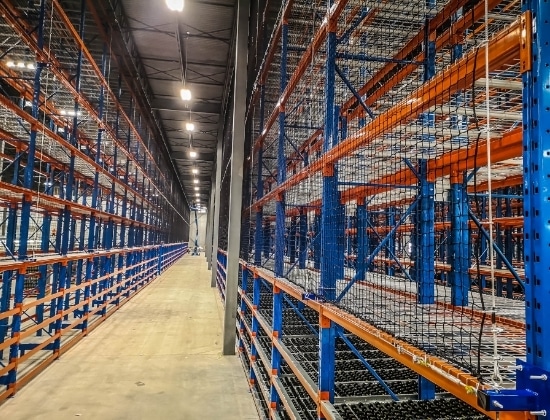

Standard Offset Rack Netting Systems (RackGuard)

RackGuard netting systems typically use engineered offset brackets to run the cables and allow the netting panels to be installed a certain distance from the face of the racking. This allows for pallet/product overhang. Standard offsets have an allowance for 4” or 6” settings, but offsets are available in sizes ranging from 2” up to 12”.

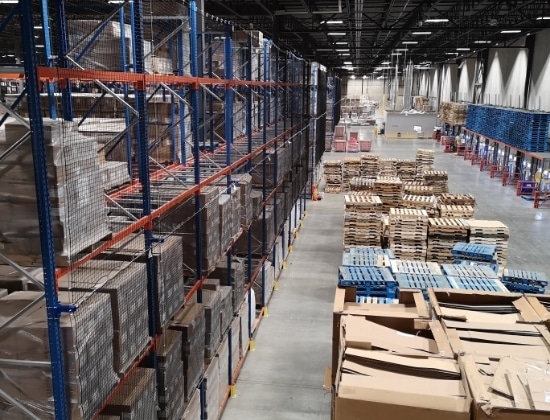

Flue Space Rack Netting Systems (RackGuard)

The flue space between racking systems is often an area that sees a high volume of product falls and damages that workers are unable to access. Our Rack Netting System can be installed within this space to help reduce product loss and keep products from getting mixed up with another pallet load.
img LFP Flue Space Netting Systems.jpg
img Horizontal Safety Netting Install 4.jpg

Horizontal Rack Netting Systems (RackGuard)

Our horizontal rack netting systems are designed to ensure the safety of workers who have to enter racking bays to access product and are at risk of having a box fall from an upper level. This custom configuration utilizes specific brackets for mounting inside the rack. Out custom horizontal netting brackets mount inside the racking system to hang our standard 2500 lbs pallet net. Custom options are available.

Netting Specifications

Specification Details
Product Name RackGuard Industrial Safety Netting
Manufacturer Factory Supply
Safety Standards Compliance OSHA
MOL ANSI WorkSafeBC
OBC
NBC CSA
BS EN
CE Certification
Netting Panel 2500 lbs net – 2” square, industrial safety netting
3000 lbs net – 2” square, industrial safety netting
6000 lbs net – 2-½” square, fall arrest netting
Netting Colour Black
Yellow
Custom colours are available for large orders
Netting Material 2500 lbs net – nylon
3000 lbs net – nylon
6000 lbs net – HTPP
Netting Cable 1/4” aircraft cable (for up to 3000 lbs pallets)
3/8” (3500 – 5000 lbs pallet load)
Netting Design Knotless netting
Sewn rope border
U.V. protection
Rigging Components 1/4 Galvanized Cable
Wire Rope Clips
Thimbles
Turnbuckles
Eyebolts
Safety Snap Hooks
Offset Brackets Available offset brackets: 2”, 3”, 4”, 6”, 9”, 10”, 12” & custom sizes
Flush mount options available
Extension Bracket Available from 1 ft up to 6 ft in height

Netting Safety and Regulations

Our netting panels are treated to meet NFPA 701 standards for fire-retardancy and have been tested and rated in accordance with ANSI A10.11 and OSHA safety standards. This includes the complete system with all of the hardware installed onto a racking system and tests made to simulate a real-case product falls.

To ensure compliance with regulations, we advise following safety net installation standards. This includes obtaining certification from qualified installers or engineers, conducting testing procedures, maintaining thorough records, and providing worker training.

A comprehensive fall protection plan must consider work nature, site or facility conditions, load capacity, and manufacturer specifications. Proper installation, maintenance, and regular inspection are critical for compliance and effectiveness.

Accumulated debris can compromise the functionality of safety nets and create hazards. Work operations should pause promptly to remove debris or any fallen objects to maintain optimal net performance.

Resources

Netting
Catalogue

Find details about all of our netting systems in our Netting Catalogue.

RackGuard
One-Pager

Discover why our RackGuard netting systems are the best warehouse safety solution.

Netting
Overview

Learn the benefits to choosing to provide our safety netting systems to your clients.

Request a Quote

Frequently Asked Questions

We have different lengths of offset brackets to allow our system to fit in the tightest of spaces.

We offer rack extensions that incorporate our offset bracket so that you can add height to your rack frames and protect your highest pallets.

Our netting is designed to catch any fallen product or pallet without any damage to your racking. Wire mesh is typically connected directly to your racks and doesn’t have flexibility. Over time, as equipment or products hit against the wire, it can get damaged and even put extra strain on your racking.

Yes, all of our systems include a user manual, custom drawing, and detailed installation instructions. If needed, we offer installation services.

We offer complete rack netting systems to protect the back and sides of your rack, as well as horizontal netting to protect tunnel bays or pic modules.

Netting is used anytime a fall hazard may exist. It is used along walkways and isles to protect workers, but is often used in the flu space to protect the product itself from falling and being damaged.

Get in touch with our sales reps, and they can provide you with a Quote Request Form that is easy to fill out. The form asks for information such as the width of your bays, the height of your rack frames, and the weight of the pallets you are looking to protect.

Yes, our netting systems are highly customizable to fit your specific rack dimensions and configurations. We offer tailored solutions to ensure optimal fit and protection.

Our netting is typically made of high-strength polyethylene or nylon material, ensuring durability and longevity. It’s designed to withstand impact and provide reliable fall protection.

Yes, our netting systems are designed and tested to meet or exceed relevant safety regulations and standards, such as OSHA (Occupational Safety and Health Administration) requirements.

Our netting systems come with comprehensive installation instructions and support. We also offer installation services if needed, ensuring a hassle-free setup process.

Our netting systems require minimal maintenance. Regular inspections are recommended to ensure the integrity of the netting and its attachments.
