Tank, Dock and Mezzanine Access Ladders
Factory Supply offers a complete line of dock and mezzanine ladders as the perfect solution to access docks, platforms and mezzanines. Each ladder is built to follow OSHA and ANSI safety regulations to maximize the safety of all users. Features such as slip resistant footing or rolling mobility offer customized solutions to increase productivity and safety when in use. Reach out to our equipment specialists for more information on both standard and custom ladder configurations.
Models
Dock ladders
Mezzanine Ladders
Tank Access
Access Stairways Dock ladders
| Product Name | Part Number | Steps | Specs | Overall length | Top step Height | Supplier Initial | |
|---|---|---|---|---|---|---|---|
| E Series | FS1-DS2 | 2 | Capacity = 300 lbs Weight = 43 lbs | 56″ | – | E | Request a Quote |
| FS1-DS3 | 3 | Capacity = 300 lbs Weight = 46 lbs | 66″ | – | E | Request a Quote | |
| FS1-DS4 | 4 | Capacity = 300 lbs Weight = 53 lbs | 76″ | – | E | Request a Quote | |
| FS1-DS5 | 5 | Capacity = 300 lbs Weight = 58 lbs | 86″ | – | E | Request a Quote | |
| FS1-DS6 | 6 | Capacity = 300 lbs Weight = 66 lbs | 96″ | – | E | Request a Quote | |
| FS1-DS7 | 7 | Capacity = 300 lbs Weight = 71 lbs | 106″ | – | E | Request a Quote | |
| FS1-DS8 | 8 | Capacity = 300 lbs Weight = 76 lbs | 116″ | – | E | Request a Quote | |
| FS1-DS9 | 9 | Capacity = 300 lbs Weight = 80 lbs | 126″ | – | E | Request a Quote | |
| FS1-DS10 | 10 | Capacity = 300 lbs Weight = 86 lbs | 136″ | – | E | Request a Quote | |
| Also available with a walk-through handle option (DT series). | |||||||
| E Series (RT) | FS1-RT3 | 3 | Capacity = 500 lbs Weight = 27 lbs | 5’8″ | 2’2″ | E | Request a Quote |
| FS1-RT4 | 4 | Capacity = 500 lbs Weight = 31 lbs | 6’8″ | 3’2″ | E | Request a Quote | |
| FS1-RT5 | 5 | Capacity = 500 lbs Weight = 36 lbs | 7’8″ | 4’2″ | E | Request a Quote | |
| FS1-RT6 | 6 | Capacity = 500 lbs Weight = 43 lbs | 8’8″ | 5’2″ | E | Request a Quote | |
| FS1-RT7 | 7 | Capacity = 500 lbs Weight = 47 lbs | 9’8″ | 6’2″ | E | Request a Quote | |
| FS1-RT8 | 8 | Capacity = 500 lbs Weight = 52 lbs | 10’8″ | 7’2″ | E | Request a Quote | |
| FS1-RT9 | 9 | Capacity = 500 lbs Weight = 56 lbs | 11’8″ | 8’2″ | E | Request a Quote | |
| FS1-RT10 | 10 | Capacity = 500 lbs Weight = 64 lbs | 12’8″ | 9’2″ | E | Request a Quote | |
| Customizations are available. | |||||||
Mezzanine Ladders
| Product Name | Part Number | Steps | Specs | Overall dimensions | Top step dimensions | Supplier Initial | |||
|---|---|---|---|---|---|---|---|---|---|
| V Series | FS10-LAD-FM-60 | 7 | Capacity = 350 lbs Weight = 374 lbs | 46 x 32 x 95″ | 23 x 9 x 60″ | V | Request a Quote | ||
| FS10-LAD-FM-72 | 8 | Capacity = 350 lbs Weight = 398 lbs | 53 x 32 x 103″ | 23 x 9 x 72″ | V | Request a Quote | |||
| FS10-LAD-FM-84 | 9 | Capacity = 350 lbs Weight = 434 lbs | 60 x 32 x 115″ | 23 x 9 x 84″ | V | Request a Quote | |||
| FS10-LAD-FM-96 | 10 | Capacity = 350 lbs Weight = 465 lbs | 67 x32 x 127″ | 23 x 9 x 96″ | V | Request a Quote | |||
| FS10-LAD-FM-108 | 11 | Capacity = 350 lbs Weight = 485 lbs | 75 x 32 x 139″ | 23 x 9 x 108″ | V | Request a Quote | |||
| FS10-LAD-FM-120 | 12 | Capacity = 350 lbs Weight = 502 lbs | 82 x 32 x 151″ | 23 x 9 x 120″ | V | Request a Quote | |||
| Customizations available. | |||||||||
| E Series | FS1-H001 | 4 | Capacity = 300 lbs Weight = 40 lbs | 29 x 35 x 70″ | – | E | Request a Quote | ||
| FS1-H002 | 5 | Capacity = 300 lbs Weight = 50 lbs | 29 x 41 x 80″ | – | E | Request a Quote | |||
| FS1-H003 | 6 | Capacity = 300 lbs Weight = 60 lbs | 29 x 46 x 90″ | – | E | Request a Quote | |||
| FS1-H004 | 7 | Capacity = 300 lbs Weight = 71 lbs | 29 x 52 x 100″ | – | E | Request a Quote | |||
| FS1-H005 | 8 | Capacity = 300 lbs Weight = 82 lbs | 29 x 58 x 110″ | – | E | Request a Quote | |||
| FS1-H006 | 9 | Capacity = 300 lbs Weight = 93 lbs | 29 x 64 x 120″ | – | E | Request a Quote | |||
| FS1-H007 | 10 | Capacity = 300 lbs Weight = 105 lbs | 29 x 70 x 130″ | – | E | Request a Quote | |||
| FS1-H008 | 11 | Capacity = 300 lbs Weight = 122 lbs | 29 x 75 x 140″ | – | E | Request a Quote | |||
| FS1-H009 | 12 | Capacity = 300 lbs Weight = 132 lbs | 29 x 82 x 156″ | – | E | Request a Quote | |||
| Platform addition is available for customization. Tread options include the EZY Tread or Grip Strut tread. | |||||||||
Tank Access
| Product Name | Part Number | Steps | Specs | Length | Width | Supplier Initial | |||
|---|---|---|---|---|---|---|---|---|---|
| C Series | FS3-STO6 | 6 | Capacity = 300 lbs | 73″ | 16″ | C | Request a Quote | ||
| FS3-STO7 | 7 | Capacity = 300 lbs | 85″ | 16″ | C | Request a Quote | |||
| FS3-STO8 | 8 | Capacity = 300 lbs | 97″ | 16″ | C | Request a Quote | |||
| FS3-STO9 | 9 | Capacity = 300 lbs | 109″ | 16″ | C | Request a Quote | |||
| FS3-STO10 | 10 | Capacity = 300 lbs | 121″ | 16″ | C | Request a Quote | |||
| FS3-STO11 | 11 | Capacity = 300 lbs | 133″ | 16″ | C | Request a Quote | |||
| FS3-STO12 | 12 | Capacity = 300 lbs | 145″ | 16″ | C | Request a Quote | |||
| FS3-STO13 | 13 | Capacity = 300 lbs | 157″ | 16″ | C | Request a Quote | |||
| FS3-STO14 | 14 | Capacity = 300 lbs | 169″ | 16″ | C | Request a Quote | |||
| FS3-STO15 | 15 | Capacity = 300 lbs | 181″ | 16″ | C | Request a Quote | |||
| Rubber-tipped legs. | |||||||||
| V Series | FS10-NTAL | 7 | Capacity = 300 lbs Weight = 95 lbs | 7″ | 14″ | V | Request a Quote | ||
| FS10-NTAL-10 | 10 | Capacity = 300 lbs Weight = 128 lbs | 10″ | 14″ | V | Request a Quote | |||
| FS10-NTAL-12 | 12 | Capacity = 300 lbs Weight = 134 lbs | 12″ | 14″ | V | Request a Quote | |||
| FS10-NTAL-15 | 15 | Capacity = 300 lbs Weight = 144 lbs | 15″ | 14″ | V | Request a Quote | |||
| Durable welded steel construction and a blue powder coat finish. The uniform capacity is 300 pounds. Models with 10-15 rungs ship knockdown. | |||||||||
Access Stairways
Access Stairways
The access stairways provide a strong and safe support to access elevated areas. Top and bottom mounting plates allow you to secure your ladder in place. With a 300 lbs capacity, the ladders meet all OSHA standards. Different tread options are available to help provide a slip-resistant surface.
| Product Name | Part Number | # of Treads | Step width | Specs | Overall dimensions | Total rise | Total Run | Supplier Initial | |
|---|---|---|---|---|---|---|---|---|---|
| E Series | FS1-1S42-36 | 5 | 36″ | Capacity = 1000 lbs Weight = 223 lbs | – | 42″ | 47.5″ | E | Request a Quote |
| FS1-1S49-36 | 6 | 36″ | Capacity = 1000 lbs Weight = 260 lbs | – | 49″ | 49″ | E | Request a Quote | |
| FS1-1S56-36 | 7 | 36″ | Capacity = 1000 lbs Weight = 309 lbs | – | 56″ | 66.5″ | E | Request a Quote | |
| FS1-1S63-36 | 8 | 36″ | Capacity = 1000 lbs Weight = 346 lbs | – | 63″ | 76″ | E | Request a Quote | |
| FS1-1S70-36 | 9 | 36″ | Capacity = 1000 lbs Weight = 382 lbs | – | 70″ | 85.5″ | E | Request a Quote | |
| FS1-1S77-36 | 10 | 36″ | Capacity = 1000 lbs Weight = 419 lbs | – | 77″ | 95″ | E | Request a Quote | |
| FS1-1S84-36 | 11 | 36″ | Capacity = 1000 lbs Weight = 468 lbs | – | 84″ | 104.5″ | E | Request a Quote | |
| FS11-1S91-36 | 12 | 36″ | Capacity = 1000 lbs Weight = 505 lbs | – | 91″ | 114″ | E | Request a Quote | |
| FS1-1S98-36 | 13 | 36″ | Capacity = 1000 lbs Weight = 541 lbs | – | 98″ | 123.5″ | E | Request a Quote | |
| FS1-1S105-36 | 14 | 36″ | Capacity = 1000 lbs Weight = 577 lbs | – | 105″ | 133″ | E | Request a Quote | |
| FS1-1S112-36 | 15 | 36″ | Capacity = 1000 lbs Weight = 626 lbs | – | 112″ | 142.5″ | E | Request a Quote | |
| FS1-1S119-36 | 16 | 36″ | Capacity = 1000 lbs Weight = 663 lbs | – | 119″ | 152″ | E | Request a Quote | |
| Customizations are available. | |||||||||
Customized Ladder Solutions
Customizations include
- Tread options
- Step width
- Deep top step variations
- Handrails or no handrails
- Frame structure
Request a Quote
How to choose the ladder size you need.
WORKING HEIGHT
Is the approximate height that you would like to be able to comfortably reach.
OVERALL HEIGHT
It is important to make sure your ladder will not be too tall to fit into your workspace. This includes, doorways, fixtures, vents and lowered ceilings.
TOP STEP HEIGHT
The measurement of the top step from the ground. It’s important that this measurement is not too far above or below your desired working height.
BASE WIDTH
As ladders get taller, the base width increases. Make sure your ladder will not be too wide for your workspace.
BASE LENGTH
This is how long the base of the ladder runs, depending on the height of the ladder. The taller the ladder, the longer the base.
Ladder Features and Benefits
Meets or exceeds all OSHA and safety standards
Reduces strain and risk of injury
Cost-effective access solution
Safe and reliable engineered fall protection solution
Customized equipment to fit your facility needs
Quick and easy storage capabilities
Durable construction for multiple applications
Adjustable features for handrails, tread and material
Related Products

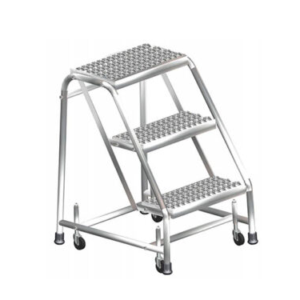

Step Stools
Providing ergonomic support and safety for workers, Factory Supply’s line of industrial step stools gives workers access to reach elevated work areas or difficult to reach items. These step stools can be easily adjusted.
Fixed Access ladders
We offer a complete line of fixed access ladders that are custom fabricated to meet your exact requirements. All of our fixed access ladders are designed to be a permanent and safe means of rooftop access.
Cantilever Ladders
Factory Supply offers a wide range of cantilever ladders designed to allow access above obstructions or difficult to reach areas with safety and ease; both supported and unsupported ladders
