Side Scroll Stands (DF071564-01)

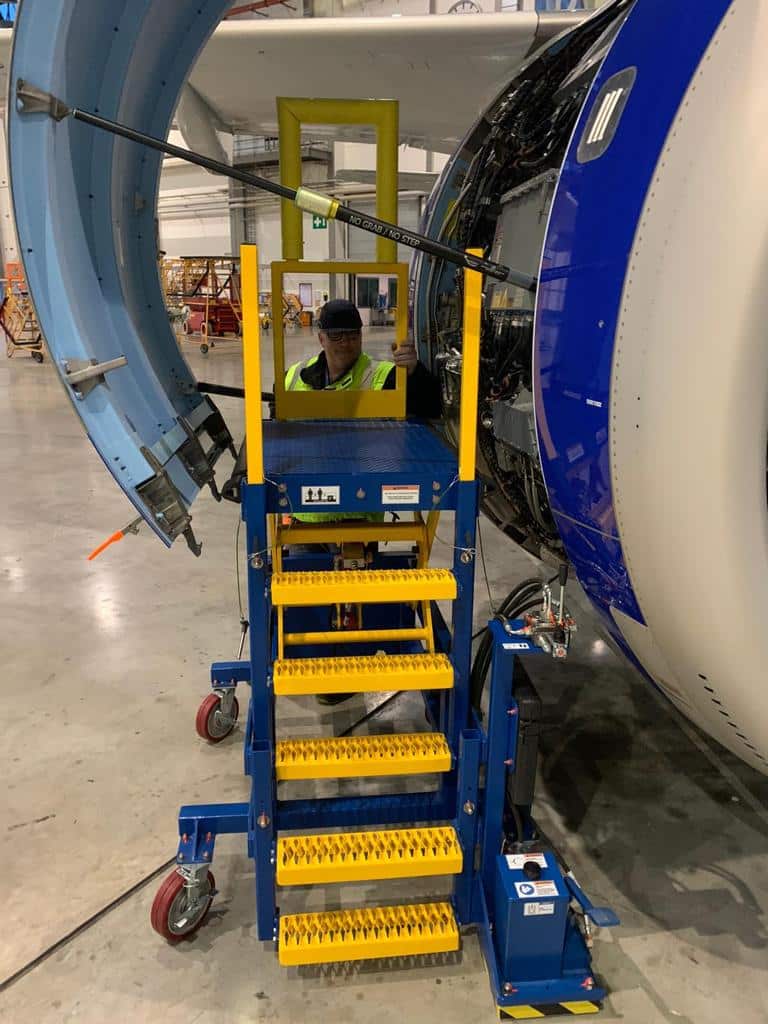

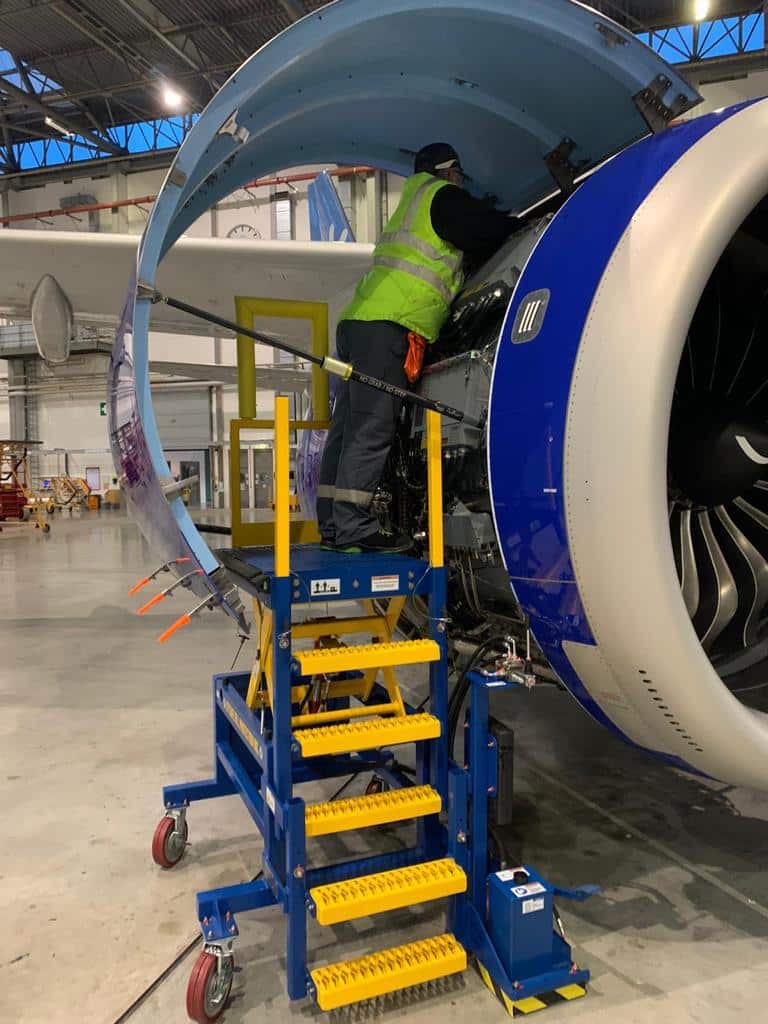

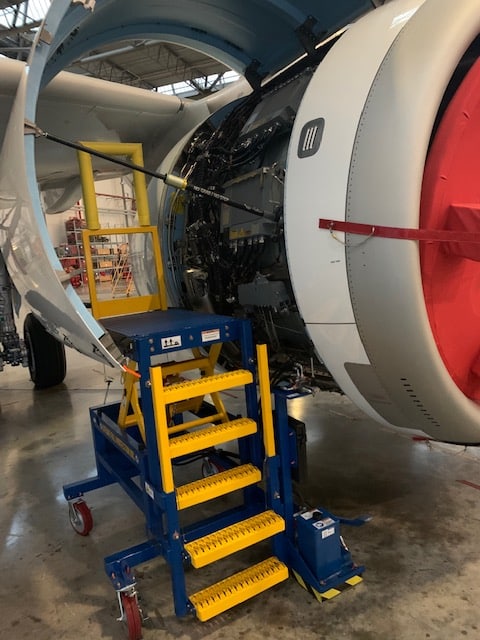

The Side Scroll Stand is engineered to provide safe and efficient aircraft maintenance access to service points beneath the cowl and reverse-thrust areas of the A320 series. This stand can also be custom-engineered to accommodate additional aircraft models. It is currently in service with numerous operators, MROs, and aircraft manufacturers. A durable powder-coat finish provides enhanced corrosion resistance and long-term reliability.
The Side Scroll Stand is hydraulically actuated using an ergonomically positioned foot pump and includes collapsible guardrails for secure operation. Anti-fatigue ladder steps contribute to both technician safety and long-term comfort during maintenance tasks.
Factory Supply’s Professional Engineers can design custom configurations tailored to your operational requirements. The Side Scroll Stand is designed and tested in accordance with ANSI-ASC A14.7 and BS EN 131.7, and includes CE Certification.
- Air powered pump
- Custom platform size and height ranges
- Fall restraint anchor points
- Utilities kit
- A320 Family
- Custom
- Fall restraint anchor points
- Safe access under C-duct engine core areas
- Anti-fatigue ladder steps ensure safe entry and exit to the stand
- Designed with removable and adjustable handrails
- Ability to be used on either engine in both the inboard and outboard positions
- Corrosion-resistant powder coat finish for longevity
- Flexibility for use on most wide body aircraft
- Anti-slip perforated decking allows liquids to drain but retains small parts and hardware
- Hydraulic or optional pneumatic height adjustment
KEY FEATURES
Full Fall Restraint
Integrated fall protection to keep technicians secure during maintenance.
Safety First
Professionally designed to ensure safe and reliable operation.
Multi-Functional Design
Adaptable platform configuration for a wide range of aircraft tasks.
Custom Solutions
Tailored to meet specific operational and aircraft requirements.
Safe Maintenance Access
Provides secure and stable access to inspection and service areas.
Compliance
Engineered and tested to meet all aviation and workplace safety regualtions.
Durable Construction
Built from high-strength materials for demanding aviation environments.
Warranty Support
Available warranty options for long-term performance assurance.
Talk to a specialist today
Specifications
| Specification | Details |
|---|---|
| Model # | DF071564-01 |
| Application | A320 Family |
| Movement | 1 Person |
| Towing speed | 10 KPH/6 MPH |
| Footprint | 36″ x 52″ / 91.44cm x 132.08cm |
| Lowered Height |
Low: 36″ / 91.44cm High: 54″ / 137.16cm |
| Weight Capacity | 300 kg/660 lbs |
| Certifications |
ANSI-ASC A14.7 BS EN 131.7 CE DIN EN 12312-8 EN 1915-1 |
| Material |
Steps: Steel Frame: Steel |
| Finish | Powder Coated Finish |
| Number of Users | 1 User |
| Caster Details |
Back: 8 / 20.3cm Split Castor with Brake and Swivel Lock Front: 6 / 15.2cm with Swivel |
| Controls | Hydraulic Foot Pump |
| Padding Material | Equipped |
Trusted by +2000 businesses
Regulations & Certifications
| OSHA |
| ANSI |
| BS EN 131.7 |
| CE |
| DIN EN 12312-8 |
| EN 1915-1 |
