Landing Gear Access Stand (DF071592-04)

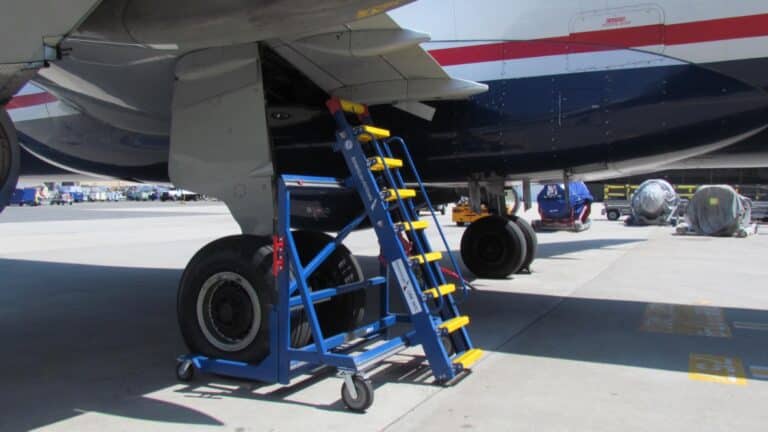

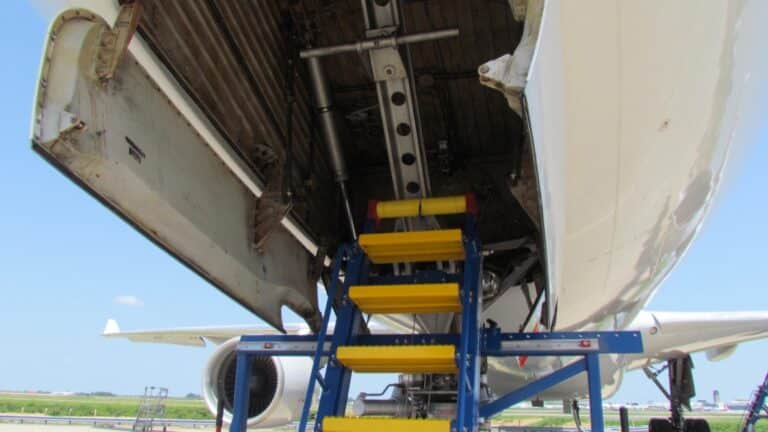

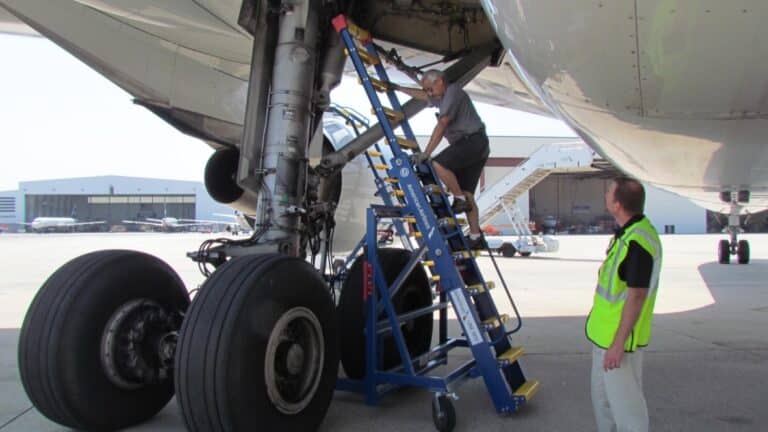

The Landing Gear Access Stand is designed to provide safe, stable access to landing gear and nose gear on a wide range of aircraft, including Boeing wide-body platforms, the B757, and main gear on the A320 family. When paired with model DF071554-06, it can also support engine access. Technicians can also use the stand for aft fuselage access, avionics bays, access panels, and forward hatches.
The stand features a fully adjustable base frame to fit most wheel assembly setups for both main and nose gear. Hydraulic height adjustment, single-hand lateral positioning, and swivel-and-lock casters allow one technician to easily move and position the unit. Safety features include anti-slip, anti-fatigue steps, a fall-restraint anchorage point on the upper ladder, and a durable powder-coat finish. Fork pockets are built into the base frame for quick relocation with a lift truck.
Although engineered for Boeing wide-body aircraft and the B757, the stand has also proven effective for B737 aft fuselage access, Airbus landing gear tasks, and Embraer 175/190 maintenance.
Built for long-term performance, the Landing Gear Access Stand meets applicable standards, including ANSI-ASC A14.7, BS EN 131.7, and CE Certification.
Factory Supply builds these stands to deliver reliable, compliant solutions for MROs and operators.
- Air Powered Pump
- Side Mount Tow Bar
- Utilities Package
- 787 “low leg” fit under door
Platforms can be used either as a set or separately
Freestanding modules are designed for regular maintenance and inspection of your aircraft
Custom solutions available
The stand is designed and tested in accordance with ANSI-ASC A14.7 and BS EN 131.7, including CE Certification
- Custom
- A300
- A310
- A318
- A319
- A320
- A330
- A340
- A350
- A380
- B717
- B727
- B737
- B747
- B757
- B767
- B777
- B787
- Bombardier CRJ
- Embraer 175
- Embraer 190
- Lockheed L-1011
- Douglas DC-8+
- DC-10 / MD-10 / MD-11
- DC-9 Super 80 / MD-80
- E-170
- E-190
KEY FEATURES
Full Fall Restraint
Integrated fall protection to keep technicians secure during maintenance.
Safety First
Professionally designed to ensure safe and reliable operation.
Multi-Functional Design
Adaptable platform configuration for a wide range of aircraft tasks.
Custom Solutions
Tailored to meet specific operational and aircraft requirements.
Safe Maintenance Access
Provides secure and stable access to inspection and service areas.
Compliance
Engineered and tested to meet all aviation and workplace safety regualtions.
Durable Construction
Built from high-strength materials for demanding aviation environments.
Warranty Support
Available warranty options for long-term performance assurance.
Talk to a specialist today
Specifications
| Specification | Details |
|---|---|
| Model # | DF071592-04 |
| Application | Landing Gear Access |
| Movement | 1 Person |
| Towing speed | 10 KPH/6 MPH |
| Footprint | 87″ x 96″ / 220.9cm x 243.8cm |
| Shipping info | 87″ x 96″ x 96″ x 1,100lbs/220.9cm x 243.8cm x 243.8cm x 498.9kg |
| Height |
Lowered: 85 3/4″ / 217.8cm Extended: 139 1/8″ / 353.3cm |
| Weight Capacity | 330 lbs/150 kg |
| Certifications |
ANSI-ASC A14.7 BS EN 131.7 CE DIN EN 12312-8 EN 1915-1 |
| Lateral Displacement | 56 ½″ / 143.5cm On Centre |
| Material |
Ladder: Steel Frame: Steel |
| Finish | Powder Coated Finish |
| Number of Users | 1 User |
| Caster Details |
Back: 8″ / 20.3cm Split Castor with Brake and Swivel LockFront: 6″ / 15.2cm with Swivel |
| Controls | Hydraulic Foot Pump |
| Fully Extended | Ladder: 57 Strokes |
| Fall Restraint Anchor Points | Equipped |
| Padding Material | Equipped |
Trusted by +2000 businesses
Regulations & Certifications
| OSHA |
| ANSI-ASC A14.7 |
| BS EN 131.7 |
| CE |
| DIN EN 12312-8 |
| EN 1915-1 |
