Gargoyle Hatch Guardrail
Roof Hatch Guardrail (Gargoyle Hatch Guardrail) systems are designed to provide fall protection for your roof hatch and make sure it is in compliance with OSHA fall protection laws. Any opening in your roof that someone could fall through is required by law to have fall protection. This applies to both an open or closed hatch in many cases. It is recommended by OSHA to move forward with the assumption that non-structural covers (such as hatch covers) cannot support a worker and still require fall protection.
What is Gargoyle Hatch Guardrail?
The simplicity of Gargoyle Hatch allows for this system to be integrated with virtually all roof openings. Designed to fit on a single pallet, most parts are pre-assembled with easy-to-follow instructions and a single tool for installation. This freestanding, modular system is constructed with corrosion-resistant lightweight aluminum tubing and utilizes counter-weighted baseplates. It requires no rooftop penetration, which will help to make sure that your roof will remain intact, so you will not have to worry about any unexpected leaks occurring from using this system.
Each system is equipped with a spring loaded, self closing gate, ensuring the HatchGuard is in a safe operating position at all times.
HatchGuard has been designed to meet or exceed all federal and state OSHA safety standards/regulations for hatches, and ANSI engineering standards
4 foot by 4 foot Kit | Hatch Guardrail

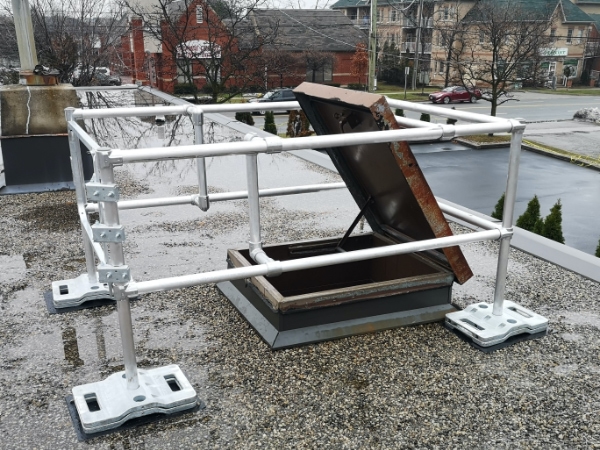

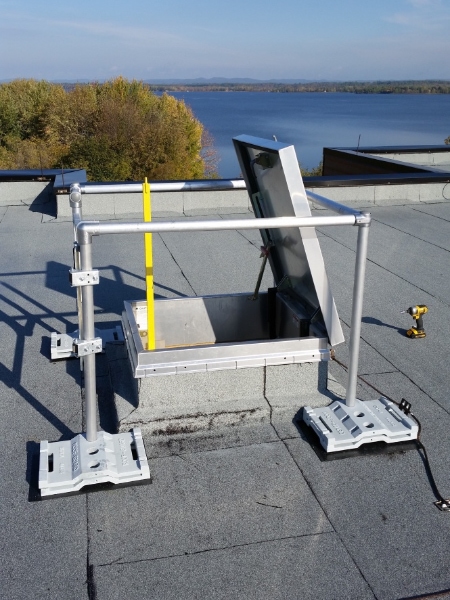

Gargoyle Hatch Guardrail comes in a unique kit format which is designed to fit most rooftop hatch openings. With 4′ x 4′ of aluminum handrail tube and a 4 foot self-closing gate, you will be able to keep both employees and contractors safe when they enter and exit your rooftop.
Can be equipped with optional grab bar.
4 Foot by 6 Foot Kit | Hatch Guardrail

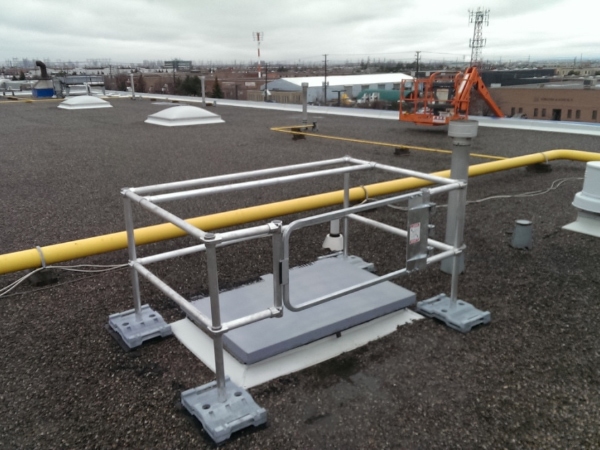

Some rooftop hatches are unique in design, whether they are larger than the average rooftop hatch or because they are unique in design; which is why we offer the option for 4′ x 6′ Gargoyle Hatch Guardrail systems.
Can be equipped with optional grab bar.
Grab Bar | Hatch Guardrail

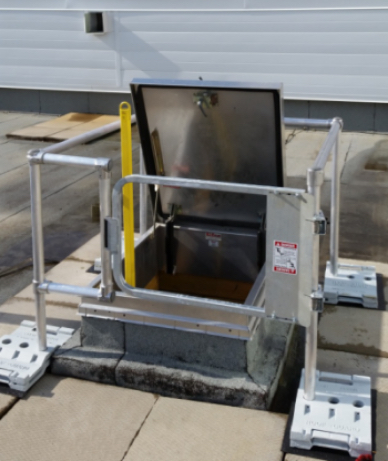

Allow your contractors and employees to safely enter and exit your rooftop hatch with the addition of a hatch bar. These roof hatch grab bars mount directly to the frame of the hatch and act as a single point of assistance. With the addition of this roof hatch grab bar, your entry onto rooftops will be both quick and safe. This accessory is designed to work on all makes and models of roof hatches and has been rigorously tested to meet stringent weight and durability requirements.
Gargoyle Hatch Guardrail Specifications
| Kit Size | Part Number | Height | Coverage | Diameter of Rail | Unit Weight |
|---|---|---|---|---|---|
| 4' by 4' | HG-KIT-08 | 42" from the ground to the top of the top rail | 16 square feet of coverage | 1.9" OD Aluminum Pipe | 450 lbs. |
| 4' by 6' | HG-KIT-4X6 | 42" from the ground to the top of the top rail | 24 square feet of coverage | 1.9" OD Aluminum Pipe | 500 lbs. |
OSHA Working at Heights Laws
| Jurisdiction | Regulation |
|---|---|
| OSHA (Construction Activities) |
|
| OSHA (Industrial Activities) |
|
| Washington State Department of Labor and Industries | Chapter 296-880 WAC Unified Safety Standards for Fall Protection |
| Oregon OSHA |
|
| Michigan MIOSHA | Construction Standard Part 45, Fall Protection |
| Kentucky KY OSH | State Specific Regulations Applicable to Construction 803 KAR 2:412, Fall Protection |
| California CalOSHA | California Code of Regulations, Title 8, Section 3210, Guardrails at Elevated Locations |
