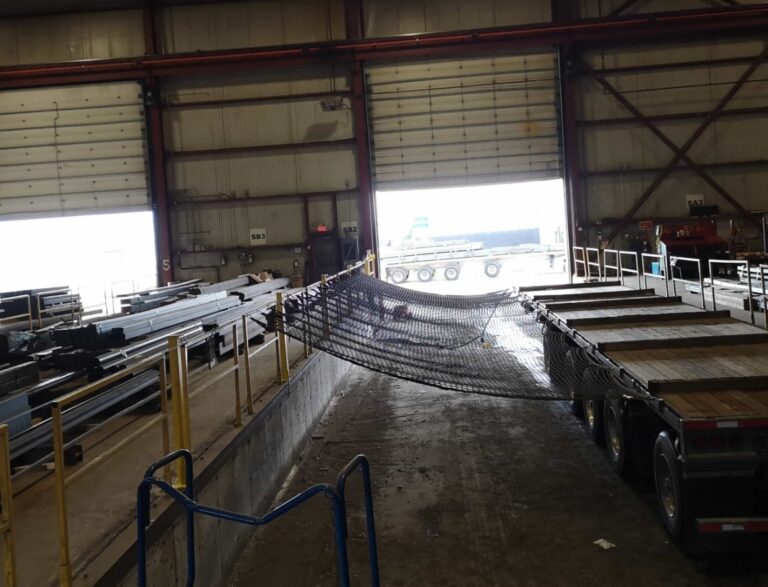

Column Mounted Truck Netting Systems
Factory Supply has designed versatile column mounted truck netting systems that provide an ideal fall protection solution for facilities with multi-use bays or areas where space is limited.
Depending on the orientation of the column, our mounting brackets are engineered to fully surround existing columns for optimal strength and support. The system is designed for smooth operation, allowing it to open and close easily without additional setup for the truck netting panel.
All of our safety netting systems and custom-engineered drawings can be stamped with engineer approval, ensuring full compliance with safety standards and dependable, long-term performance in your facility.
Our netting panels are treated to meet NFPA 701 standards for fire-retardancy and have been tested and rated in accordance with ANSI A10.11 and OSHA safety standards. This includes the complete system with all of the hardware installed onto a racking system and tests made to simulate a real-case product falls.
To ensure compliance with regulations, we advise following safety net installation standards. This includes obtaining certification from qualified installers or engineers, conducting testing procedures, maintaining thorough records, and providing worker training.
A comprehensive fall protection plan must consider work nature, site or facility conditions, load capacity, and manufacturer specifications. Proper installation, maintenance, and regular inspection are critical for compliance and effectiveness.
Accumulated debris can compromise the functionality of safety nets and create hazards. Work operations should pause promptly to remove debris or any fallen objects to maintain optimal net performance.
KEY FEATURES
Tailored Solutions
Customized netting systems designed to fit your facility and workflow needs
Employee Protection
Provides reliable protection to prevent injury or death from falling objects.
COST-EFFECTIVE
Efficient and affordable solutions that reduce costs while improving safety.
Risk Reduction
Helps minimize potential fines, insurance claims, and costly incidents.
Compliance
Exceeds compliance standards, including ANSI, OSHA and Cal/OSHA.
Safety First
Products engineered with uncompromising safety and quality to protect your people.
Public Protection
Protects passersby and visitors from injury caused by falling materials.
Durable Design
Constructed for long-lasting use, ensuring ongoing safety and peace of mind.
Talk to a specialist today

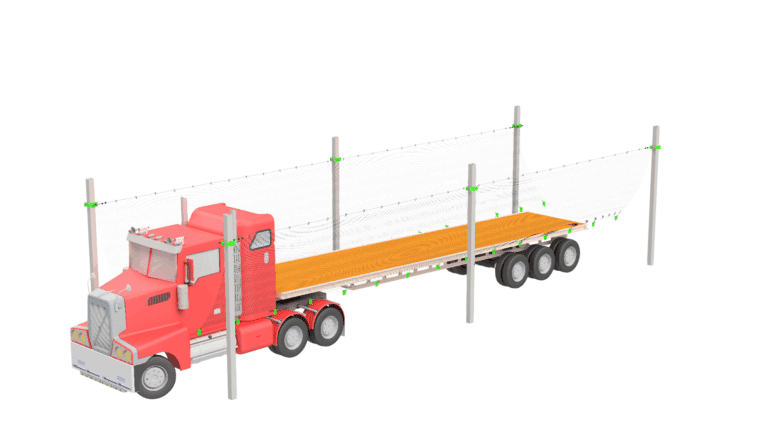

Classic Column Mount Truck Netting System
The Classic Column Mount Truck Netting System is an ideal fall protection solution for facilities with limited floor space. Depending on the orientation of the column, the mounting brackets are designed to wrap around existing structural columns, saving space while providing optimal support.
This system is engineered for quick installation, utilizing existing facility infrastructure for efficiency and convenience. All netting systems and custom-engineered drawings can be stamped with engineer approval, ensuring full compliance and dependable safety performance.
- 3 columns (6-inch x 6-inch)
- Pivoting arm
- Compression bar (made up of three bars)
- Column base (4 ft x 4 ft x 2.5 ft)
- 3/8-inch galvanized GAC
- Snap hooks for every 2 ft
- 2 3/8-inch light duty thimble
- 1 net panel
- 4 3/8-inch wire rope clips
- 1 TB (6-inch x half inch)

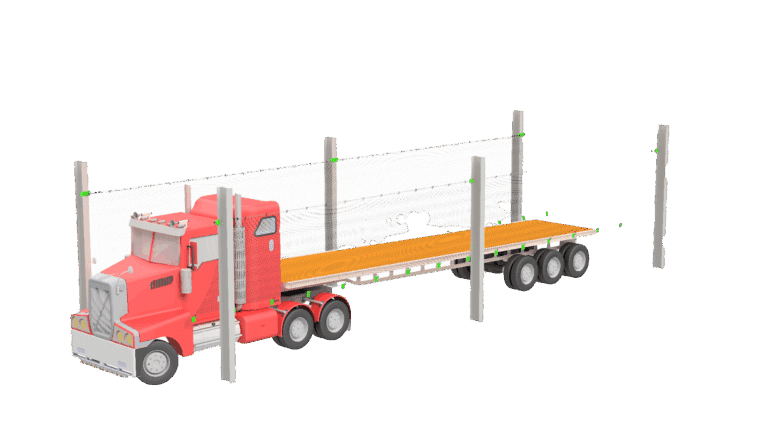

Flange Mount Truck Netting System
- 3 flange mount brackets (consist of 3 plates)
- 3/8-inch galvanized GAC
- Snap hooks for every 2 ft
- Stake pockets every 2 ft
- 2 3/8-inch light duty thimble
- 1 net panel
- 4 3/8-inch wire rope clips
- 1 TB (6-inch x half inch)
Your Perfect Solution Awaits!
Netting Specifications
| Specification | Details |
|---|---|
| Product Name | Truck Safety Netting |
| Manufacturer | Factory Supply |
| Safety Standards Compliance |
OSHA MOL ANSI WorkSafeBC OBC NBC CSA BS EN CE Certification |
| Netting Panel |
3000 lbs net – 2” square, industrial safety netting |
| Netting Colour |
Black Yellow Custom colours are available for large orders |
| Netting Material |
3000 lbs net – nylon |
| Netting Cable | 1/4” aircraft cable |
| Netting Design |
Knotless netting Sewn rope border U.V. protection |
| Rigging Components |
Column mount brackets Galvanized GAC Snap hooks Stake pockets Thimbles Net panel Wire rope clips |
FREQUENTLY ASKED QUESTIONS
Passive vs Active fall protection?
Passive fall protection does NOT require any action by people. Examples include: Guardrails, Safety Nets, etc. Active fall protection requires training and direct connection to an engineered fall protection system or anchor point. Examples include: Body Harnesses and Lanyards, Anchor Points, etc.
What are the regulations i need to know?
OSHA 12.10 (1.1), every employer shall provide a fall-protection system to any person, other than an employee who is installing or removing a fall-protection system in accordance with the instructions referred to in subsection (5), who works: (a) from an unguarded structure or on a vehicle, at a height of more than 2.4 m above the nearest permanent safe level; (b) from a temporary structure at a height of more than 6 m above a permanent safe level.
ANSI A10.11 All nets supplied are manufactured and tested in accordance with Industry Standards, and all such netting has been tested to strict ANSI standards as laid out in ANSI A10.11. This includes the complete system with all hardware installed onto a racking system and tests made to simulate a real-case product fall.
Is this something I could install on my own?
Yes, all of our systems include a user manual, custom drawing, and detailed installation instructions. If needed, we offer installation services.
Untested and/or self-fabricated remedies are risky. You are responsible for any accidents relating to the failure of hardware and installation. Incorrect installation could result in a system that does not provide the protection you require.
When would I need truck netting?
Netting is used anytime a fall hazard may exist. It is used to protect workers when performing a job on or around a parked flatbed truck.
What do I need to provide to get a quote?
Get in touch with our netting sales reps, and they can provide you with a Quote Request Form that is easy to fill out. The form asks for information such as the width of your bays, the height of your rack frames, and the weight of the pallets you are looking to protect.
Things to consider
The amount of space available beside the “typical” trailer location when loading/tarping/etc.
The further away from the trailer you can position the posts, the lower the posts have to be.
Overhead cranes. Do they load from the side, the end or both? If from the side, how high can the posts be without interfering with the loading process?
Connection to the trailer – the standard system requires attachment directly to the trailer while the pivot system does not.
Forklift loading from the side – is this done at all? If so, the trailer safety nets will not work.
