Mobi-Crane
Customizable Configuration Choose from a wide selection of modules tailored to your needs, including adjustable columns, boom arms of varying lengths, and a range of tools such as hoists, mechanical and magnetic devices, as well as pneumatic and vacuum tools. We are committed to providing you with a bespoke solution designed to perfectly match your application.
Integrated Pneumatic Capability Our lifting arm features integrated air feed, enabling seamless connection to customized pneumatic handling tools. The crane is not only electrically galvanized for longevity but also boasts a maintenance-free design. With a variety of pneumatic configurations available, we cater to your unique operational requirements.
Versatile Mounting Options MOBI-Crane offers multiple mounting options to suit your specific needs. Whether you require mobility, precision, or stability, we’ve got you covered. Choose to mount the crane onto a floorplate for easy mobility using a pallet jack or forklift. Alternatively, you can opt for direct installation to the floor, wall, or an existing column, ensuring that your setup aligns perfectly with your workspace.

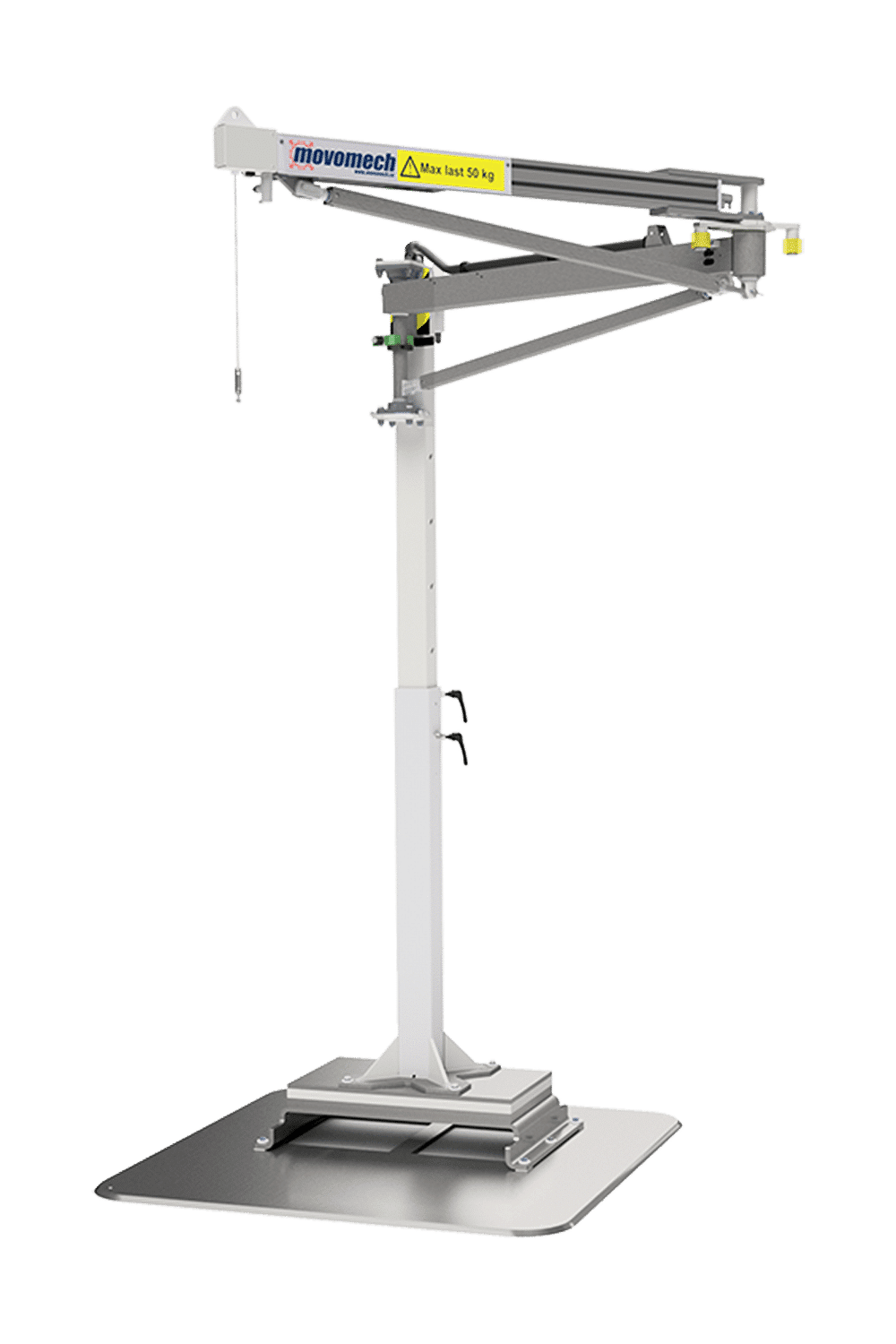

mechline pro crane
The Mechline Pro Crane is a stand-alone lifting solution that offers fast, easy, and efficient lifting. This articulating jib crane (part of the MOBI-Crane family) offers effortless lifting of weights up to 185 lbs. with no installation needed. The Mechline Pro is also a very flexible solution, allowing for loads to be grabbed both horizontally and vertically. There is a wide range of suction cups and yokes to choose from, offering easy-to-connect features for swift changes and tool swaps. It is the perfect solution for lifting boxes, sacks, barrels, furniture, and more!
- Capacities up to 185 lbs
mobi-arm
The MOBI-Arm is a flexible mobile articulating arm crane equipped with a wide variety of manipulators and end effectors suitable for any task. The MOBI-Arm’s mobility is achieved through the usage of a standard manual pallet truck, allowing for efficient placement of the system. It also comes in a variety of sizes, these being 6.6 ft, 8.2 ft, 10 ft, 11.6 ft, and 13.1 ft. The tower is adjustable in 4-inch increments and offers fitting for custom options available upon request.
- Articulating arm available in 6.6 ft, 8.2 ft, 10 ft, 11.6 ft, and 13.1 ft
- Tower adjusts in 4-inch increments
- Custom options are available upon request

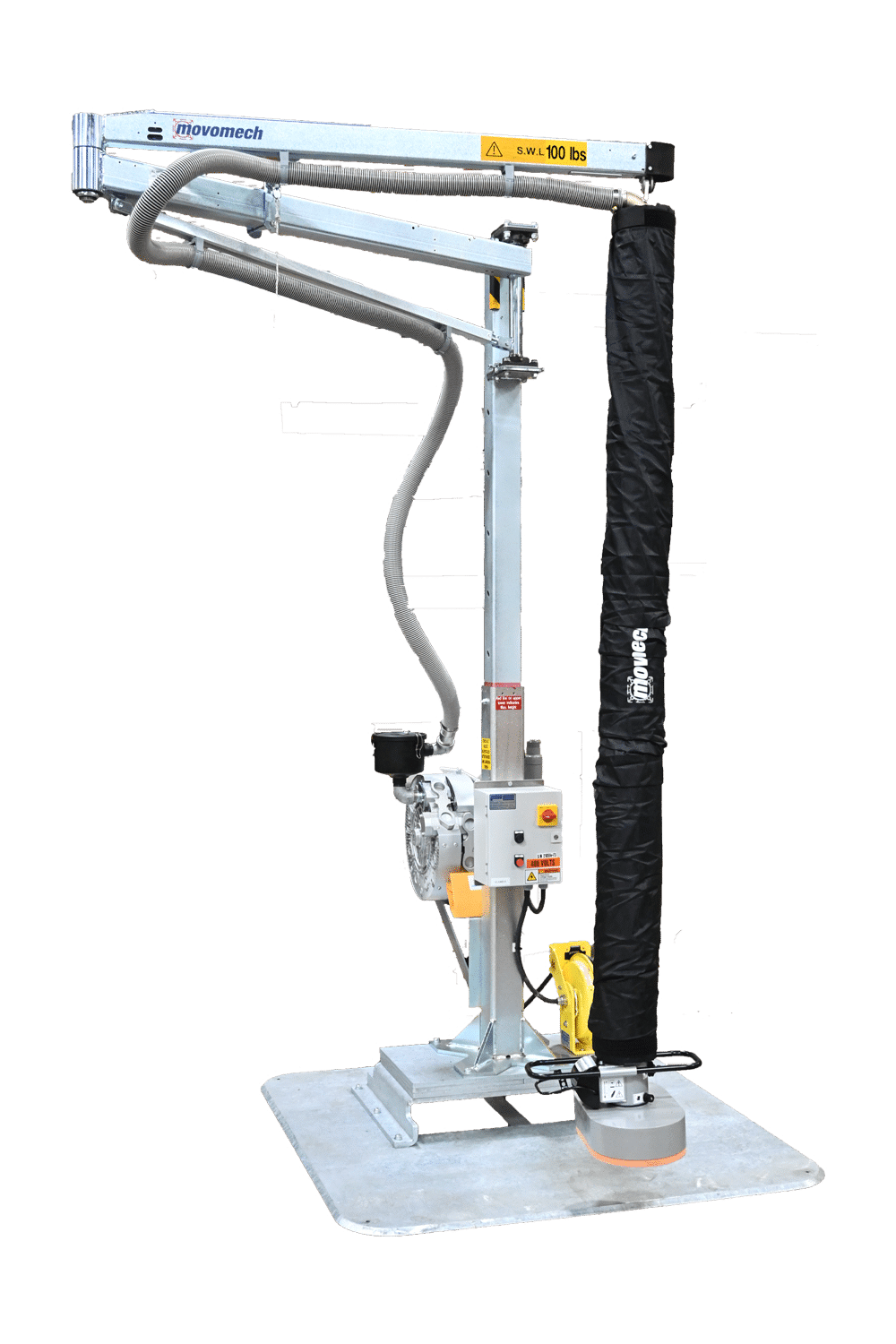

vacuhand pro crane
- Capacities up to 185 lbs
- No installation required
- Quick connection for easy replacement of suction cup / tool
Mobi-Crane Specifications
Mechline Pro Crane
| Specifications | Details |
|---|---|
| Type | Articulating Jib Crane with Integrated Wire Balancer |
| Reach | Up to 13 feet |
| Height-Adjustable Floor Pillar | Yes |
| Mobile Platform Compatibility | Yes |
| Air Supply for Pneumatic Gripping Tool | Integrated in Crane Arm |
| Surface | Anodized and Maintenance-Free |
| Lifting Wire Durability | Up to 300,000 Work Cycles |
| Pneumatic Configurations | Several |
| Lifting Capacity | Up to 185 lbs |
| Typical Applications |
|
Mobi-arm
| Specifications | Details |
|---|---|
| Type | Mobile Articulating Arm Crane |
| End Effectors and Manipulators | Wide Range |
| Mobility | Pallet Jack |
| Articulating Arm Options | 6.6 ft, 8.2 ft, 10 ft, 11.6 ft, 13.1 ft |
| Tower Adjustments | 4-inch Increments |
| Custom Options | Available Upon Request |
Vacuhand Pro Crane
| Specifications | Details |
|---|---|
| Type | Hybrid Articulated Jib Crane |
| Interchangeable Suction Feet | Wide Range for Bags, Boxes, Sheet Goods, etc. |
| Mounting Options | Floorplate, Directly to Floor, Wall, or Column |
| Mobility Options | Pallet Jack, Forklift, Various Installation Methods |
Regulations
| All of our MOBI-Crane solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20. |
