Movomech Electric Cranes & Manipulators
Movomech Electric Cranes and Manipulators includes our line of modular rail systems. Through a series of suspensions and trolleys, we can easily build complete systems, even with extensions and accessories as needed. Our smooth-running trolleys make sure that PHB cranes can be moved rapidly and repeatedly without harming the loads. If roof-mounting is unavailable, the Movomech electric crane line can be mounted into the ceiling or floor-mounted steel structures.
Talk to a specialist today

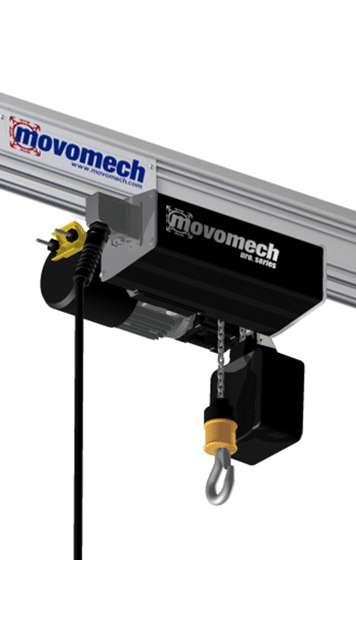

Mechchain Pro
Features
- General lifting with slings or hooks.
- High-precision assembly work.
- Material handling using custom grippers.
- Efficient packing onto pallets and roller conveyors.
Mechlift E
Features
- Handles loads ranging from 165 to 1,430 pounds.
- Offers a maximum stroke of 78 inches.
- Adaptable with standard or customized tools and accessories, including rotation units, tool fittings, and brake units.
- Versatile across a wide range of industry sectors, catering to diverse lifting and handling needs.
Movomech Electric Crane Specifications
mechchain Pro
| Specifications | Details |
|---|---|
| Type | Lifting Unit with Frequency Control |
| Lifting Capacity | 63 kg, 80 kg, 125 kg |
| Lifting Speed | 0-16 m/min (63 kg, 80 kg), 0-12 m/min (125 kg) |
| Rail System Compatibility | LHB/PHB1/AHB1-2 (63 kg, 80 kg), PHB1/AHB1-2 (125 kg), AHB1-2 (125 kg) |
| Stroke | 5 m (option for 7 m) |
| Noise Level | < 70 dB (A) |
| Max Dead Weight | 17 kg |
| Chain | 4x9 mm |
| Motor Effect | 0.22 kW |
| Voltage | 1x230V, N, PE (±15%), 50/60Hz |
| Fusing | 10 AT |
| Enclosure Class | IP 54 |
Mechlift E
| Specifications | Details |
|---|---|
| Type | Ergonomically Designed Momentum Absorbing Lifter |
| Lifting Capacity | 165-1,430 pounds |
| Maximum Stroke | 78 inches |
| Tools and Accessories | Standard or Customized Tools and Accessories (Rotation Units, Tool Fittings, Brake Units, etc.) |
| Common Applications |
- Lifting Rolls - Handling Doors - Handling Windows - Lifting Storage Tanks - Handling Auto Parts |
Regulations
| All of our Material Handling solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20. |
