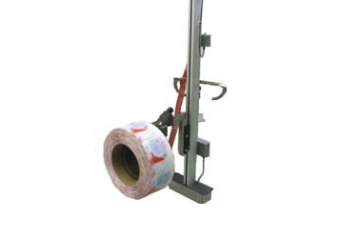

Light Duty Core Gripping Roll Handlers
Core gripping roll handlers use a long shaft that inserts into the core of your roll and expands to fit the inside circumference.
Light Duty Core Gripping roll handlers are used to lift, move, and reorient rolls that weigh from 0 lbs. to 500 lbs.
These pieces of equipment can be designed to perform a number of functions, the two main functions are;
Horizontal
Roll handlers that are designed mainly to move a roll from one point to another without having to change the horizontal orientation of a roll. The shaft fits inside the core of the roll, can move the core up or down, forward or back, side to side.
Lift, turn, and rotate
Roll handlers that are designed to change the orientation of a roll. This can be to turn, rotate, and lift. The shaft fits inside the core of the roll and expands to grip the inside circumference. That way the roll can be turned from a horizontal to vertical orientation, rotated in tight spaces, or between different machinery, among many other practical uses.
Injury incident: Accident Report Detail

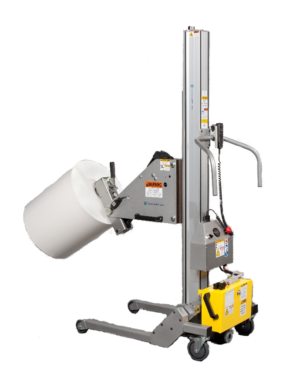

ERH 400 Portable Electric Roll Handler
The revolutionary ERH-400 portable electric roll handling machine is half the size and weight of previous models, yet has 25% more lifting capacity. This roll handling unit is used to lift and turn rolls by their core and is often used for palletizing, transporting and loading rolls.
The ERH-400 has a lightweight extruded aluminum frame that is easy to push and maneuver. It is also rugged and low maintenance.
*Optional pusher probe that can automatically disengage cores from the roll handler available as an add-on.

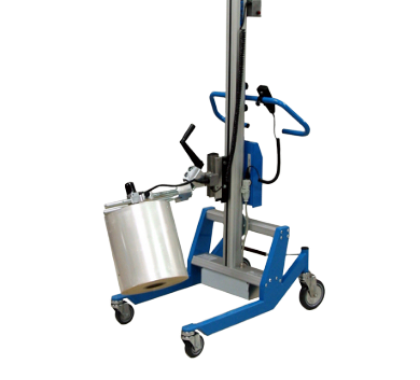

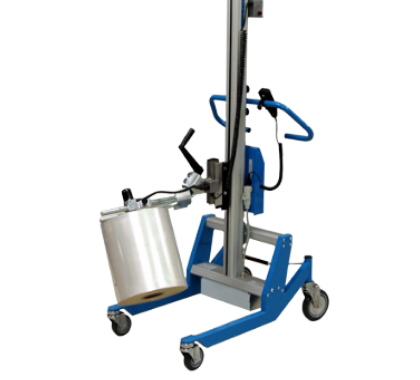

Expand-O-Turn 12107-1 Series Electric
The 12107-1 Series Electric Expand-O-Turn roll handling device is an electrically operated core expander designed for paper and film rolls with 3” and 6” cores. This roll handling device allows for you to manually rotate the roll of a variety of different dimensions, and rolls which weigh up to 300 lbs. The rolls can be picked up from the vertical position at floor/pallet level and deposited at random heights in a horizontal position.

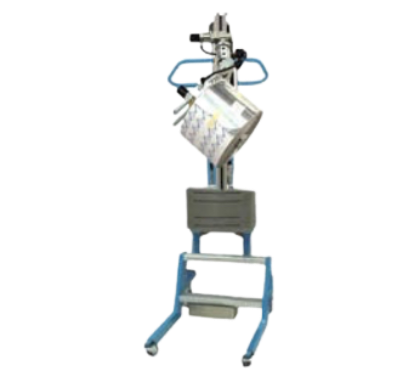

Expand-O-Turn 12107-2 Series Offset Roll Handler
This piece of roll handling equipment is designed to be used for mounting operations, making it perfect for palletizing rolls or similar operations. The Powered Offset Expand-O-Turn has an electric adjustment and a manual option for optimal use. With the addition of this roll handling unit to your material handling process, you will be able to increase the efficiency of your staff and decrease the danger that is present from handling rolls.
Expand-O-Turn 12107-3 Series Air Activated Roll Handler
This vertical roll lifter is an air-activated core expander designed for paper and film rolls. It can lift rolls of varying dimensions with 3” and 6” cores that weigh up to 250 pounds from a vertical position on the floor/pallet and place them at heights designated by the operator in a horizontal position. The Expand-O-Turn expander is switch operated and provides air to a bladder inside the expander mechanism.

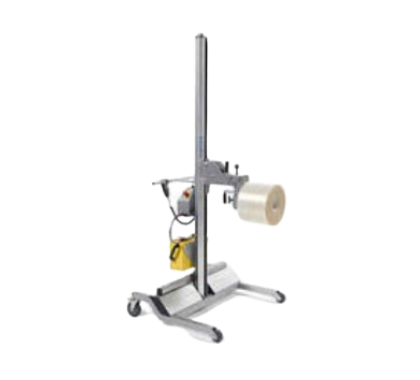

ERH-200 Electric roll handler
This lightweight electric roll handling unit is designed to lift and turn rolls. With plenty of different tooling options, this roll handling unit is great for almost all low capacity roll handling situations. This roll handling unit is battery powered to make lifting, turning and maneuvering a roll easy, ergonomic and improve productivity.
Expand-O-Turn 17970 Series Pneumatic Roll Handler
The 17970 Series Pneumatic Expand-O-Turn is designed to lift and turn rolls by their cores and is perfect for palletizing, transporting and loading rolls. The roll handling unit is operated with the use of the pushbuttons making it efficient and easy to use. For paper and film rolls that have unique core sizes, the Expand-O-Turn uses a DC powered compressor for core expansion. Rolls of varying dimensions can then be safely handled.
Models
- Drastic reduction in heavy/repetitive lifting
- Customized for your specific application, designed to work with your product(s)
- Reduction in workplace illness/injury claims, resulting in lower insurance costs
- Allows for diversity/adaptability on the job, more workers are now able to complete the task without physical limitations being an issue
- Our systems pay for themselves via productivity and efficiency increases
- Weight and capacity ranges are considered during the design process, our systems can handle multiple weights, textures and products without altering the system
- Designed to work in your specific facilities conditions, such as high heat, dust, humidity, moisture etc.
- Pulp and Paper
- Textile
- Packaging
- Pharmaceutical / Medical
- Food and Beverage
- Manufacturing
All of our Roll Handling solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20.
- Schlumpf
- Armanni
- R on I
- Paper
- Plastic
- Film
- Textiles
- etc
