Heavy Duty Core Gripping Roll Handlers
Core gripping roll handlers use a long shaft that inserts into the core of your roll and expands to fit the inside circumference.
Heavy Duty Core Gripping roll handlers are used to lift, move, and reorient rolls that weigh 500 lbs. or more.
These pieces of equipment can be designed to perform a number of functions, with two main categories;
Horizontal
Roll handlers that are designed mainly to move a roll from one point to another without having to change the horizontal orientation of a roll. The shaft fits inside the core of the roll, can move the core up or down, forward or back, side to side.
Lift, turn, and rotate
Roll handlers that are designed to change the orientation of a roll. This can be to turn, rotate, and lift. The shaft fits inside the core of the roll and expands to grip the inside circumference. That way the roll can be turned from a horizontal to vertical orientation, rotated in tight spaces, or between different machinery, among many other practical uses.
Injury incident: Accident Report Detail
At 9:00 a.m. on November 10, 2018, an employee was using a hoist to lift a 12 inch wide roll of paper on a pallet and the hoist shaft came out of the roll. The employee fractured his ankle and leg when the roll tilted off the pallet and struck him. The employee also sustained soft tissue damage to his leg and ankle as well. The employee was hospitalized.
ERH 700 Roll Handler
The ERH-700 portable electric roll handling machine is used to lift and turn rolls by the core for palletizing, transporting and loading rolls. It features up to 700 pounds of lifting capacity and has powered lift and powered turning operations. This roll handling machine’s lightweight frame is easy to push & maneuver; in addition, it is rugged and low maintenance, which will help to ensure you get the most out of this roll handling machine.
Speedy-PT10X Roll Handler
This roll handling unit is both precise and powerful. It is battery powered and has a capacity of 1,500 lbs (680 kg). It is able to lift and turn rolls by using the core for palletizing, transporting and loading. The rolls are secured by being held inside the core without any contact to the valuable materials thus reducing the risk of both material damage and operator injury.
Master-PT10X Roll Handler
The most precise and powerful battery-powered walk-behind roll lifter to date, the Master-PT10X is able to lift 2,200 lbs (1,000 kg). This roll lifter utilizes a system which holds the roll inside the core without coming in contact with any of the exterior material, helping to ensure that no material is damaged and preventing operator injury, which in turn helps to save your company money and valuable resources.

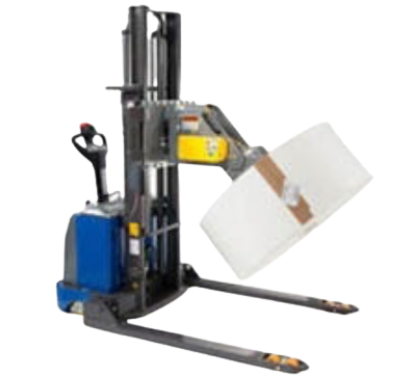

Delta-PT20X Roll Handler
Designed with operator safety in mind, this walk behind roll handling device is able to manoeuvre rolls up to 3,300 lbs (1,496 kg). This roll handling system is able to lift and turn rolls by holding the roll inside the core ensuring no exterior contact occurs helping to reduce the risk of both material damage and operator injury. This material handling device was designed with operator safety in mind and will help to eliminate material damage, worker injury and prevent slow change over times with roll handling equipment.
Models
- Drastic reduction in heavy/repetitive lifting
- Customized for your specific application, designed to work with your product(s)
- Reduction in workplace illness/injury claims, resulting in lower insurance costs
- Allows for diversity/adaptability on the job, more workers are now able to complete the task without physical limitations being an issue
- Our systems pay for themselves via productivity and efficiency increases
- Weight and capacity ranges are considered during the design process, our systems can handle multiple weights, textures and products without altering the system
- Designed to work in your specific facilities conditions, such as high heat, dust, humidity, moisture etc.
- Pulp and Paper
- Textile
- Packaging
- Pharmaceutical / Medical
- Food and Beverage
- Manufacturing
All of our Roll Handling solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20.
- Schlumpf
- Armanni
- R on I
- Paper
- Plastic
- Film
- Textiles
- etc
Request a Quote
