Multi-Level Phase Maintenance Stand
Get 360-degree access to your helicopter maintenance points with the Heli Grade Solutions Phase Maintenance Stand.

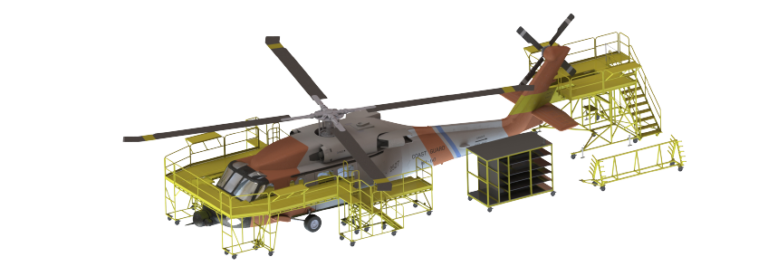

Designed for the Sikorsky H-60 series aircraft, this stand provides access to the engine, transmission, main rotor, tail rotor, and fuselage. Aircraft technicians use this system for full phase maintenance and complete aircraft overhauls.
This full phase maintenance package includes rolling nose stands and tail stands with slide-outs and a tail rotor trap-door notch. The right and left fuselage stands include stair access, slide-outs, and a workstation / tool tray. The system features lightweight aluminum construction and 8″ precision casters with brakes on all stands. Our in-house engineering team designed these American-made Heli Grade Solutions to meet and exceed ANSI, OSHA, and Cal/OSHA compliance standards.
Factory Supply Aviation Access Equipment is engineered to fit multiple aircraft types and access points. In addition to the aircraft models listed, our equipment meets the criteria of many aircraft that share similar access point specifications. Contact our specialists to confirm compatibility or discuss customization options.
- Lockheed Martin: Sikorsky UH-60 Blackhawk, MH-60/SH-60 Seahawk, HH-60 Pave Hawk and S76
- Full wraparound set for the Sikorsky H60 series (modifications available for other models)
- Slide outs equipped for different zones
- 8” Heavy duty swivel casters with brakes and swivel locks
- Mill finish aluminum rolling helicopter drive shaft rack
- Composite plate decking
- Diamond plate decking and grip-strut tread
KEY FEATURES
Full Fall Restraint
Integrated fall protection to keep technicians secure during maintenance.
Safety First
Professionally designed to ensure safe and reliable operation.
Multi-Functional Design
Adaptable platform configuration for a wide range of aircraft tasks.
Custom Solutions
Tailored to meet specific operational and aircraft requirements.
Safe Maintenance Access
Provides secure and stable access to inspection and service areas.
Compliance
Engineered and tested to meet all aviation and workplace safety regualtions.
Durable Construction
Built from high-strength materials for demanding aviation environments.
Warranty Support
Available warranty options for long-term performance assurance.
Talk to a specialist today
Specifications
| Specification | Details |
|---|---|
| Model # | FSH-UH60-PM |
| Helicopter application |
Sikorsky UH-60 Sikorsky MH-60 Sikorsky SH-60 Sikorsky HH-60, Sikorsky S-76 |
| Certifications |
OSHA 1926. 1053 ANSI-ASC 14.2-2017 |
| Height |
Fuse: 108” Tail: 138” |
| Width |
Fuse: 48” Tail: 122” |
| Length |
Fuse: 355” Tail: 120” |
| Shipping info | 40’ Shipping container |
| Upper deck height |
Fuse: 72” Tail: 102” |
| Lower deck height | Fuse: 48” |
| Vertical clearance |
Fuse: 108” Tail: 138” |
| Platform dimensions |
Fuse: 48” x 296” Tail: 120” x 122” |
| Load capacity | 1500 lbs per side |
| Deck capacity | 500 lbs lower/300 lbs folding platform |
| Stair capacity | 250 lbs |
| Step width | 36” |
| Material | Steel |
Trusted by +2000 businesses
Regulations & Certifications
| OSHA 1926. 1053 |
| ANSI-ASC 14.2-2017 |
| BS EN 131.7 |
| CE |
| DIN EN 12312-8 |
| EN 1915-1 |
