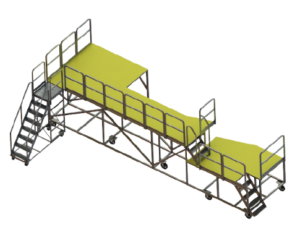

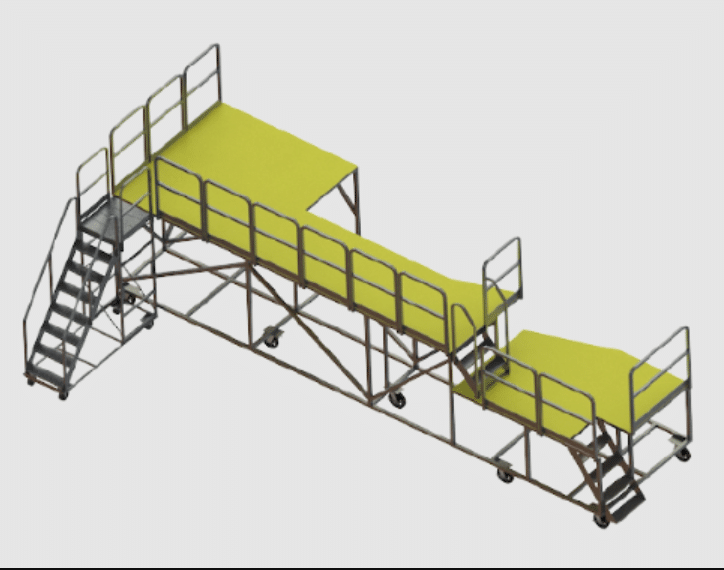

Multi-Level Maintenance Stand
This Helicopter Maintenance Stand from Factory Supply provides safe access to the main rotor, transmission, and engine along the fuselage, offering multi-level access to critical aircraft maintenance points. The stand features removable handrails, lightweight durable aluminum construction, and a total load capacity of 1,200 lbs per side.
Our Heli Grade Solutions are American-made and fully customizable to meet your specific facility and equipment requirements. Each product is designed to meet or exceed OSHA and ANSI safety standards, ensuring user safety at all times.
Factory Supply Aviation Access Equipment is engineered to fit multiple aircraft types and access points. In addition to the aircraft models listed, our equipment meets the criteria of many aircraft with similar access specifications. Contact our specialists to confirm aircraft compatibility or discuss customization options.
- Airbus: Eurocopter EC135/Airbus H135, Eurocopter EC145/Airbus H145
- Full wrap around fuselage stand
- Multilevel platform
- Collapsable for ease of shipping
- Removable hand rails
- Lightweight aluminum construction
- Composite plate decking
- Diamond plate decking and tool trays
KEY FEATURES
In-house expertise
We are well-equipped and ready to tackle your custom projects.
Safety First
All our products are designed and built in accordance with industry standards.
Custom design
Custom access products and equipment designed with advanced software.
Innovation
Developed with advanced design software and streamlined processes.
Compliance
Meets and exceeds compliance standards, including ANSI, OSHA and Cal/OSHA.
Customer service
We provide the best experience while meeting and exceeding project expectations
Talk to a specialist today
Specifications
| Specification | Details |
|---|---|
| Model # | FSH-EC130-PM |
| Helicopter application |
Eurocopter EC-130 / 135 Airbus H130 / 135 |
| Certifications |
OSHA 1926. 1053 ANSI-ASC 14.2-2017 |
| Height | 116” |
| Width | 92” |
| Length | 330” |
| Shipping info | 92” x 326” x 75”x 1500 lbs |
| Upper deck height | 75” |
| Lower deck height | 50” |
| Vertical clearance | 116” |
| Platform dimensions | 90” x 44”; 132” x 48”; 72” x 96” |
| Load capacity | 1200 lbs |
| Deck capacity | 1200 lbs |
| Stair capacity | 250 lbs |
| Step width | 24” |
| Material | Aluminum |
Trusted by +2000 businesses
Regulations & Certifications
| OSHA 1926. 1053 |
| ANSI-ASC 14.2-2017 |
| BS EN 131.7 |
| CE |
| DIN EN 12312-8 |
| EN 1915-1 |
Your Perfect Solution Awaits!
PROJECTS
![Engine and rotor access stand [helicopter]](https://www.factorysupply.com/wp-content/uploads/2021/09/Helicopter-Platforms-7-2-300x225.jpg)
Custom rotary-wing access stand for the US Coast Guard
With easy mobility and a secure locking mechanism, this tail rotor access stand provides access to difficult to reach areas of the helicopter and is safe for two-person use. It is fabricated with sturdy materials to stand the test of time.
Helicopter maintenance stand
Providing access to difficult to reach areas of the helicopter, this sturdy helicopter access stand allows your workers to safely and securely perform maintenance checks and repairs.
