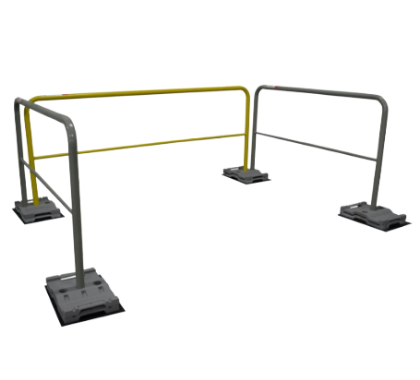

Gargoyle Rooftop Guardrail | Agile Series
The Gargoyle Rooftop Guardrail, Agile Series is a unique, easy to install rooftop guardrail system. This rooftop fall protection system is designed with pre-fabricated rail sections which can be installed and dismantled quickly for temporary applications, without sacrificing quality, durability and most importantly safety.
This unique system gives you the ability to design your own rooftop guardrail solution, allowing you to determine how much linear coverage you need, from 8 feet to over a 100 feet.
Note: This system is sold by the rail length.
What To Expect From OSHA
OSHA 1910.29(b) contains system requirements that employers must follow to ensure guardrail systems will protect workers from falling to lower levels.
1910.29(b)(1) The top edge height of top rails, or equivalent guardrail system members, are 42 inches (107 cm), plus or minus 3 inches (8 cm), above the walking working surface. The top edge height may exceed 45 inches (114 cm), provided the guardrail system meets all other criteria of paragraph (b) of this section.
Injury incident
Accident Report Detail:
On January 9, 2020, Employee #1, employed by a construction company, was working at an existing two-story commercial building. He was killed in a fall.
All products are customizable depending on rooftop layout
and applications and include:
- Grated slip resistant walkways
- Complete installation manual and layout drawings
- Counter weighted baseplates
- Rubber mats to protect rooftop membrane
- Vertical posts
- Horizontal rails
- Set Screws
- Provides site-specific coverage
- Quick and easy installation
- Modular design for fast, easy assembly
- Custom sizes are available for non-standard skylights
- Meets or exceeds all OSHA safety regulations
- Available in both kit and custom configurations
- Galvanized finish is corrosion resistant aluminum
- Requires NO penetration of the roof membrane, therefore no risk of leaks
- Counterweighted system utilizing cast steel base plates to provide enough weight on the “returns” to meet all requirements of lateral force loading
- “Passive” fall protection system
- Provides site-specific coverage (i.e. single HVAC unit) or provides full or partial perimeter coverage on a rooftop
- Commercial and residential
- Manufacturing
- Municipal and educational
- Industrial
- Membrane roof
- Ballast roof
- Metal roof
- Flat or low slope roofs
This system is designed to meet or exceed all major governing bodies fall protection requirements including:
United States – Construction Activities Legislation
OSHA 1926 Subpart M: Fall Protection – 1926.501(b)(2)(ii)
OSHA 1926 Subpart M: Fall Protection – 1926.501(b)(4)(i)
United States – Industrial Activities Legislation
OSHA 1910 Subpart D – Walking-Working Surfaces – 1910.28(b)(1)(i)
OSHA 1910 Subpart D – Walking-Working Surfaces – 1910.28(b)(7)
See a full listing of our Gargoyle Rooftop Guardrail product line.
A guide to understanding fall protection regulations and why you need Gargoyle Guardrail.
Request a Quote
Gargoyle Line Of Products
An investment in fall protection
Cost-effective working at heights safety solutions
Safe and reliable engineered fall protection solution
Meets or exceeds all OSHA and ANSI safety standards and regulations
Protects employees from injury or death from potential accidents working at heights
Reduces the potential for costly fines and high insurance premiums
All individual components are under 40 lbs
Reduces PPE and training requirements of staff and contractors
Simple and quick installations that require only one tool
ON THE LEADING EDGE OF SAFETY
Passive Vs Active Fall Protection
Passive Fall Protection
Active Fall Protection
- Passive fall protection solution
- Galvanized cast steel weights (40 lbs)
- Non-penetrating system (zero risk of rooftop leaks)
- Stack to desired weight to meet safety requirements
- Easy and ergonomic installation
