Movomech Pneumatic Cranes & Manipulators
Movomech Pneumatic Cranes and Manipulators includes our line of modular rail systems. Through a series of suspensions and trolleys, we can easily build complete systems, with extensions and accessories as needed. Our smooth-running trolleys make sure that PHB cranes can be moved rapidly and repeatedly without harming the loads. If roof-mounting is unavailable, Movomech pneumatic cranes can be mounted into the ceiling or floor-mounted steel structures.

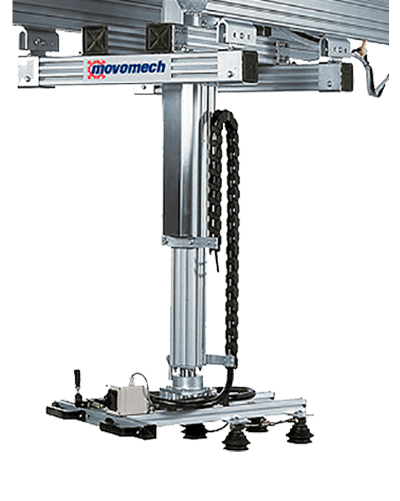

Mechlift P
The Pneumatic Mechlift Pro, known as Mechlift P, is constructed using anodized telescoping aluminum profiles, reducing maintenance requirements. This highly adaptable lifter serves a wide range of lifting and handling applications, offering compatibility with standard or customized tooling and accessories, such as rotation units, tooling fixtures, and brake units.
- Counterbalanced for various loads or equipped with a balancing function for loads up to 330 pounds
- Compatible with both electric and pneumatic drive units (Powerdrive) for controlled lateral movement
- Reliable and easy to service
- Moving doors, windows, storage tanks, and automotive parts with ease.

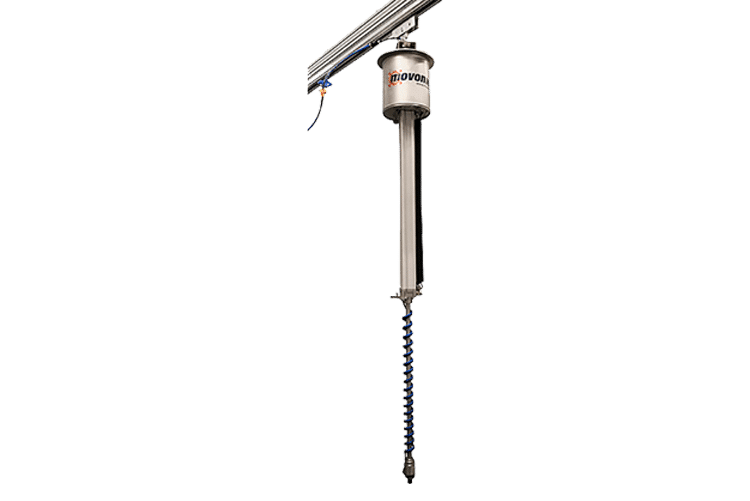

Mechlight Pro
Meet the Mechlight Pro, an air-operated lifter designed for easy handling of fixed loads up to 110 pounds, boasting an impressive working stroke of up to 47 inches. It can be equipped with a balancing function to accommodate a diverse range of loads. This versatile lifter can be effortlessly installed on overhead rail systems, wall mounts, or pillar-mounted cranes.
- Handles fixed loads up to 110 pounds
- Offers a working stroke of up to 47 inches
- Easily mountable on various systems for seamless operation
Mechline Pro
Introducing the Mechline Pro—an effortlessly maneuverable line balancer designed to handle loads of up to 110 pounds with ease. The lifting wire, renowned for its exceptional durability, can withstand up to an impressive 300,000 work cycles. For those engaging in frequent use, averaging around 200 operating cycles per day, this translates to an extended lifespan of 1500 working days—equivalent to over five years of reliable performance!
- Handles up to 110 pounds, providing robust and reliable assistance.
- Lifting wire endures 300,000 cycles for long-lasting and consistent use.
- With 200 daily cycles, lasts over five years reliably.
- Ideal for assembly and material handling in diverse industries.

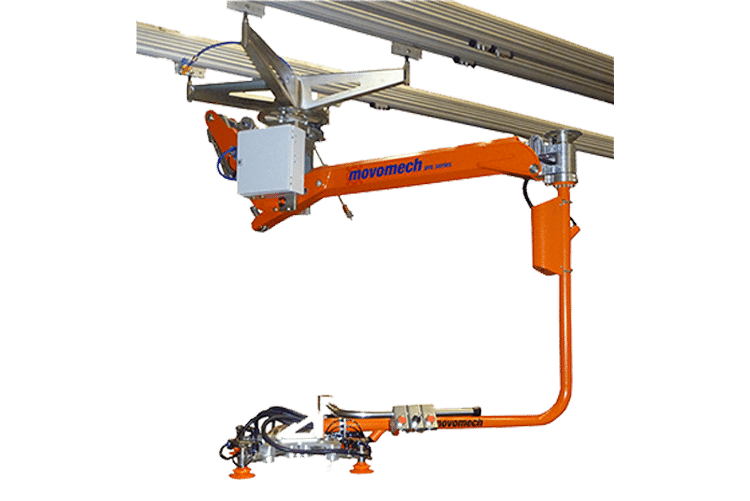

Mechspace Pro
The Mechspace Pro is a pneumatic momentum-absorbing lifter thoughtfully designed for effortless control, flexibility, and seamless movement across a vast workspace. Its unique momentum-absorbing features make it a valuable asset for tackling intricate material handling tasks and maneuvering unconventional loads.
- Capable of handling loads up to 154 pounds
- Provides a maximum working stroke of 35 inches
- Available in both hanging and pillar-mounted configurations
Movomech Pneumatic Crane Specifications
Mechlift P
| Specifications | Details |
|---|---|
| Type | Pneumatic Mechlift Pro |
| Versatility | 63 kg, 80 kg, 125 kg |
| Tooling and Accessories | Standard or Customized (Rotation Units, Tooling Fixtures, Brake Units, etc.) |
| Counterbalancing | Yes (For Handling Various Loads) |
| Drive Unit | Electric or Pneumatic (Powerdrive) for Controlled Sideway Motion |
| Common Applications |
- Lifting and Handling Material Rolls or Sheets - Handling Doors - Handling Windows - Lifting Storage Tanks - Automotive Parts Handling |
| Features |
- Easy Integration - Many Pneumatic Versions - Reliable and Easy to Service - Handling Auto Parts |
Mechlight Pro
| Specifications | Details |
|---|---|
| Type | Ergonomically Designed Momentum Absorbing Lifter |
| Lifting Capacity | 165-1,430 pounds |
| Maximum Stroke | 78 inches |
| Tools and Accessories | Standard or Customized Tools and Accessories (Rotation Units, Tool Fittings, Brake Units, etc.) |
| Common Applications |
- Lifting Rolls - Handling Doors - Handling Windows - Lifting Storage Tanks - Handling Auto Parts |
Mechline Pro
| Specifications | Details |
|---|---|
| Type | Ergonomic Lightweight Lifter (Pneumatic) |
| Lifting Capacity | Up to 50 kg |
| Lifting Stroke | 400-1200 mm |
| Noise Level | < 70 dB (A) |
| Tare Weight | 23 (27) kg (Standard and Automotive Versions) |
| Lifting Speed | 0-40 m/min |
| Rotation | 0-360° (Unlimited) |
| Air Consumption per Cycle | 9.8 ln/mSL (at 5 bar) |
| Working Pressure | 4.5-6 bar |
| Working Temperature | 5-40 °C (Indoor Use) |
| Applications |
- Material Handling in Manufacturing Industry - Light Vehicle Parts Assembly Work - Picking from Conveyors and Roller Conveyors |
Mechspace Pro
| Specifications | Details |
|---|---|
| Type | Pneumatic Moment Absorbing Manipulator |
| Load Capacity | 50-70 kg |
| Maximum Torque | 500 Nm |
| Length of Stroke | 900 mm |
| Noise Level | <70 dB (A) |
| Maximum Tare Weight | 100 kg (Hanging Model) |
| Hoisting Speed | 0-40 m/min |
| Rotation | 0-330° (Upper and Lower) |
| Air Consumption per Stroke | 8 l (With Maximum Load) |
| Working Pressure | 4-7 bar |
| Working Temperature | 5-40 °C |
Regulations
| All of our Material Handling solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20. |
