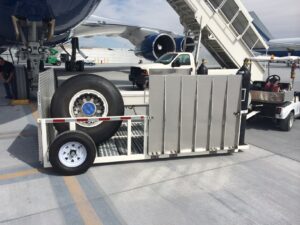

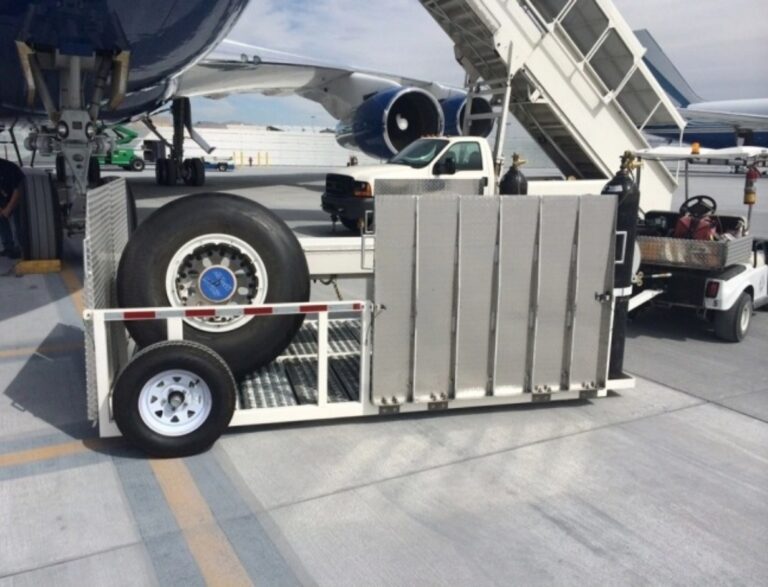

Wheel and Brake Service Cart
Our Wheel and Brake Service Cart is designed to provide safe and quick transportation of aircraft wheel assemblies, brakes and required tooling while maintaining the storage requirements of regulatory bodies (EASA, TC, FAA). Operational for both commercial and private/business jet operators, the Wheel and Brake Service Cart can be configured to carry B777 tires along with associated tire change jacks and tools, or a full ship set of tires for a CL-605.
Factory Supply Aviation Access Equipment has been engineered to fit multiple aircraft types and access points. Please note that in addition to the aircraft models listed, our equipment meets the criteria of numerous aircraft models that match the access point specifications of our tested equipment. Contact our specialists to confirm if your aircraft is applicable or for customization options.
![Service Cart [fixed wing]](https://www.factorysupply.com/wp-content/uploads/2021/09/img-Tire-trailer-300x240.png)
Wheel and Brake Service Cart
- Model #: DF081002
- Capacity: 2,500lbs / 1,134kg Or As Required
Wheel and Brake Service Cart
- Model #: DF081002
- Designed for: All Aircraft Types
- Deck Height: 3/4″ / 12.7cm Or As Required
- Width: 40″ 116″ / 294.6 cm Or As Required
- Capacity: 2,500lbs / 1,134kg Or As Required
- Towing speed: 2,500lbs / 31 MPH / 50 KPH
- Structure material types: Steel or Aluminum
- Finish: Based Upon Customer Requirements
- Wheels: 15″ / 38.1cm or 16″ / 40.6cm Wheels Based on Customer Requirements
- Padding material: As required
- Accessories: Foam filled tires, Solid tires, Nitrogen bottle holders, Brake lifting hoist, Fully covered Tool boxes, Surge braking system
- Low-profile design and lightweight swing gates ensure safety of maintenance staff during use
- Foam-filled tires are available upon request
- Provides safe transportation of aircraft wheel assemblies, brakes and required tooling
- Can be configured to carry associated tire change jacks and tools
- Universal
Build Your System
"*" indicates required fields
Fixed Wing Maintenance
Safety in the air starts on the ground
Full fall restraint provisions
Multi-functional design
Customizable to individual operational requirements
Designed and tested in accordance with all safety regulations
Warranty options available
Safe access to maintenance and inspection points
Safe and reliable engineered solution
Durable construction for multiple applications
