Tail Dock Maintenance Stand
This Tail Dock Access Stand from Factory Supply’s Heli Grade Solutions is used for tail rotor access. Aircraft technicians use these stands for routine inspection, maintenance, and repair of helicopter tail rotor components. This tail stand has kick-out slide platform extensions as well as rotor access and work trays to facilitate safe and efficient work.
These rotary wing maintenance stands are American-made and customizable for your specific facility and equipment requirements. Each product has been designed to meet and/or exceed all OSHA and ANSI safety standards to ensure user safety at all times.
Factory Supply Aviation Access Equipment has been engineered to fit multiple aircraft types and access points. Please note that in addition to the aircraft models listed, our equipment meets the criteria of numerous aircraft models that match the access point specifications of our tested equipment. Contact our specialists to confirm if your aircraft is applicable or for customization options.
Don’t see it?
Let’s build it.
An innovative and intuitive tool designed to simplify the development of your custom safety solution/access stand.
Projects
From fixed wing to rotary wing, every successful project begins with a solid relationship with our clients.
> Related Project: C37 And G550 Tail Dock
> Related Project: Tail Rotor Access Stand

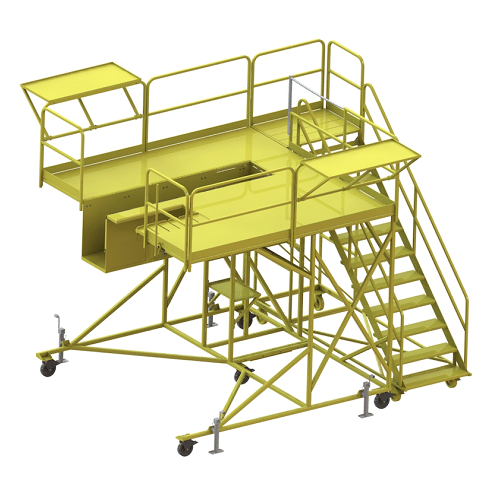

Tail Dock Maintenance Stand
- Model #: FSH-011TD
- Height: 139”
- Width: 124”
- Length: 162”
- Weight: 4,200 lbs
- Shipping info: 94” x 70” x 120” /94” x 60” x 20” / 120” x 36” x 45”
- Deck height: 102”
- Vertical clearance: 140”
- Platform dimensions: 120” x 124”
- Load capacity: 1500 lbs per side
- Stair capacity: 250 lbs
- Step width: 36”
- Material: Steel
- Certifications: OSHA 1926. 1053; ANSI-ASC 14.2-2017
- Helicopter application: Sikorsky-SH-60, MH-60-Seahawk
- Accessories: Composite plate decking, diamond plate decking and grip-strut tread
- Kick out slide platform extensions
- Working height of 102”
- Rotor access tray
- Work trays
- Padding surrounding all contact areas
- Diamond plate/fibre plate composite
Sikorsky SH-60/MH-60 Seahawk
Build Your System
"*" indicates required fields
Rotary Wing Maintenance
Safety in the air starts on the ground
Full fall restraint provisions
Multi-functional design
Customizable to individual operational requirements
Engineered to meet or exceed all OSHA and ANSI safety standards
2 year bumper to bumper warranty
Safe access to maintenance and inspection points
In-house design and engineering team
World class fabrication for multiple applications
DESIGN
From inception, through to design, fabrication, and installation; Factory Supply Heli Grade Solutions specializes in standard and custom rotary-wing Engine Access Stands. Working alongside our valued clients in the Commercial, Military, and Private Aircraft sectors, we have been recognized as a leader in quality, innovation, dependability and customer service. Our products are designed to safely access maintenance inspection points, perform painting, assembly, overhaul and repairs.
Our specialized solutions allow maintenance personnel to work both safely and efficiently while protecting the aircraft. Our access stands are constructed with premium American materials and products, while exceeding all regulatory requirements including OSHA and ANSI.
Regulatory and Compliance
All Factory Supply products are engineered, designed, built and tested in accordance with OSHA and ANSI regulations.
Many of our products have also been tested, and meet or exceed BS EN 131.7, DIN EN 12312-8, EN 1915-1, and include CE certifications.
Built for safety and ease of use
Each stand is equipped with padding on all contact areas of the frame and platform to protect the helicopter from accidental bumps.
A focus on the finer details
Factory Supply’s Heli Grade Solutions include easy storage, anti-slip and anti-bounce tread, high durability steel or aluminum construction, height adjustability options, as well as your choice of powder coat or custom color branding.
