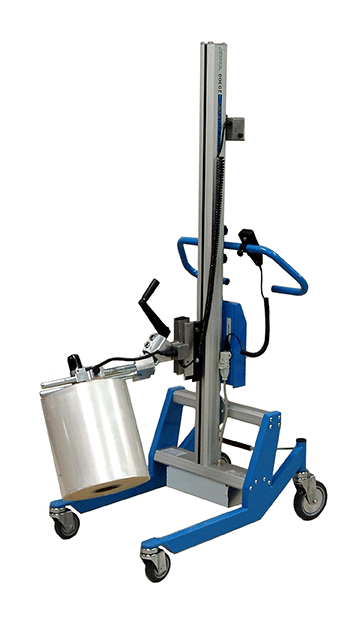

Lift-O-Flex 19000 Series Portable Lifter
The Lift-O-Flex 19000 Series portable ergonomic lifter provides your facility with a dynamic load handling option tailored for heavy load capacities, while reducing injuries and creating a more efficient work environment.
The 19000 Series features three models, differing in lift capacity. Starting at 350 lbs (159 kg) for the 19000, 500 lbs (227 kg) on the 19500, and 700 lbs (317 kg) for the 19700 model.
All models provide flexibility and are interchangeable with a numerous amount of attachments and additions.
attachments
End-effector that can be equipped with different arms to handle various products that need rotating.
Vacuum
End-effector that features adjustable magnets allowing lifting of up to 200 lbs.
forks
Fixed or adjustable forks for material handling where space is limited.
Load Platform
Allow operators to handle totes, boxes, roles and pails. Available in standard and custom sizes.
Core Probe
Available in a fixed or wheeled model, used to handle rolls from pick up to drop off.
Custom
We also offer custom solutions to meet your individual needs.
Lift-O-Flex 19000 Series Features and benefits
| Features and Benefits | |
|---|---|
| Lift Capacities |
|
| Anodized Aluminum Profiles |
|
| Steel (Powder Coated Paint-Optional SS) |
|
| Standard and Custom Leg Configurations and Heights |
|
| Standard and Custom Length Lift Masts | |
| Foot Operated 3-Position Central Brake System |
|
| Lift Mast Slip Clutch on Down Movement |
|
| Current Limiting (No Limit Switches) |
|
| Totally Enclosed Lift Mast with Ball Screw |
|
| Electronic Power Pack |
|
| Detachable Remote Controller |
|
| Adjustable Handlebar |
|
Lift-O-Flex 19000 Series Specifications
| Floor to top of Mast - Standard Legs | Floor to top of Mast - Low Profile Legs | Total Lift Stroke - Standard Mast | Total Lift Stroke HD Mast | |
|---|---|---|---|---|
| 2003mm (78.8") | 1951mm (76.8") | 1375 (54.1") | 1262mm (49.7") | |
| 2503mm (98.5") | 245mm (96.5”) | 1875mm (73.8”) | 1694mm (66.7”) | |
| 3003mm (118.2") | 2951mm (116.1“) | 2368mm (93.2”) | 2260mm (89”) | |
| SPECIFICATIONS | ||||
|
Minimum Lift Height:
Lift-Speed 19000 Series: Lift-Speed 19500 Series: Legs-Standard (Overall Length): Legs-Low Profile (Overall Length): Legs-X-Low Profile (Overall Length): Wheel Material: Wheel Diameter (Front/Back) Standard: Wheel Diameter (Front/Back) Low built: Wheel Diameter (Front/Back) X-Low built: Width: Outside: Noise level: Maximum Load 19000 Series: Maximum Load 19500 Series: Lifter Weight w/o End-Effector: Battery Type: Voltage: Battery Capacity: Recharge Time: Finish: |
~56mm (~2.2")
~100mm/sec (4”/sec) ~50mm/sec (2”/sec) Std Length 984mm (38.75”)-Long 1184mm (46.62”)-X-Long 1384mm (54.5”) Std Length 961mm (37.84”)-Long 1161mm (45.72”)-X-Long 1361mm (53.6”) Std Length 900mm (35.4”)-Long 1110mm (39.7”) Polyurethane/Rubber 100mm (3.9”)/150mm (5.9”)-Front Single Swivel 62mm (2.44”)/100mm (3.9”)-Front Dual Swivel 76mm (2.9”)/150mm (5.9”)-Front Fixed Castor Std-556mm (21.8”) Wide 680mm (26.7”) X-Wide 858mm (33.4”) >70dB(A) 160Kg (350-lbs) 225Kg (500-lbs) 90Kg (198-lbs) Lead Gel Cell Battery 24V, 2 Amp 7.2 AHr 6-8 Hours Powder Coated Paint/Anodized or Stainless Steel/Anodized |
|||
Regulations
| All of our Lift-O-Flex solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20. |
