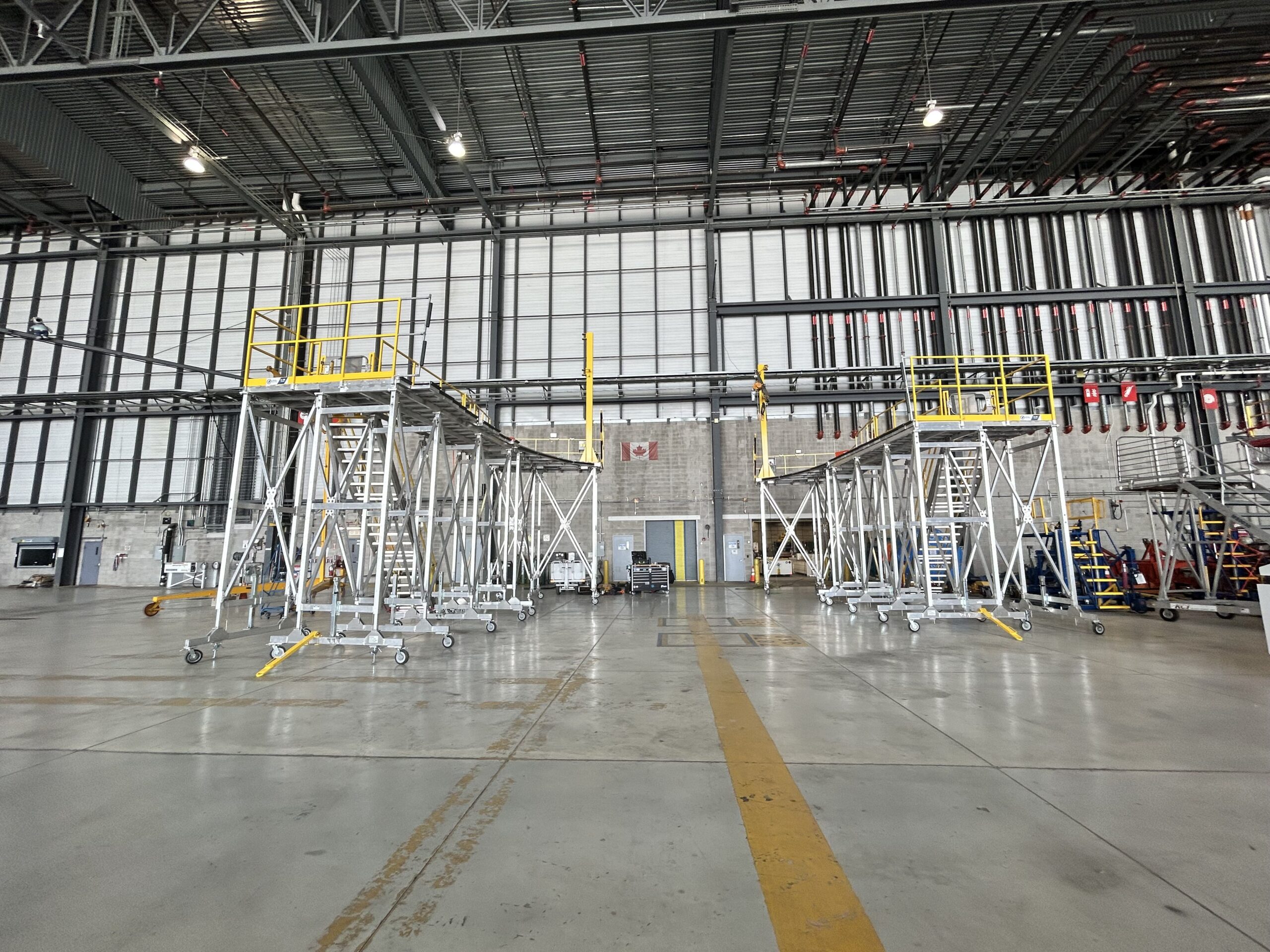

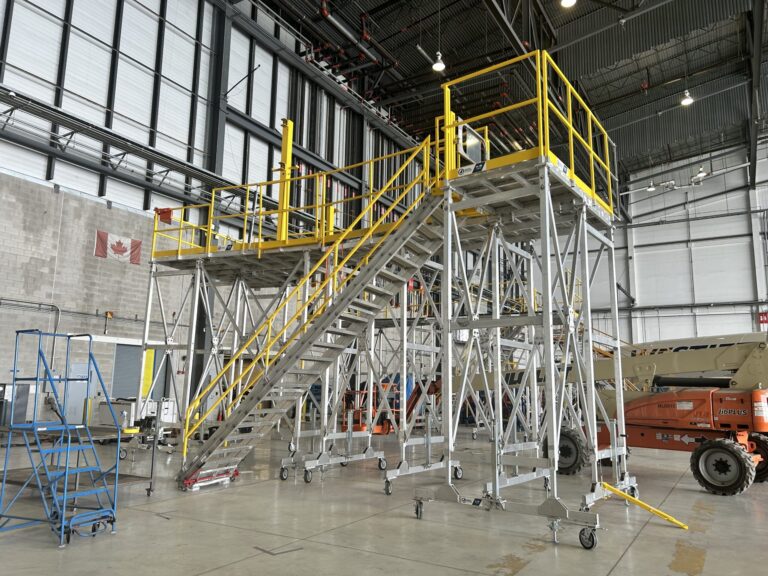

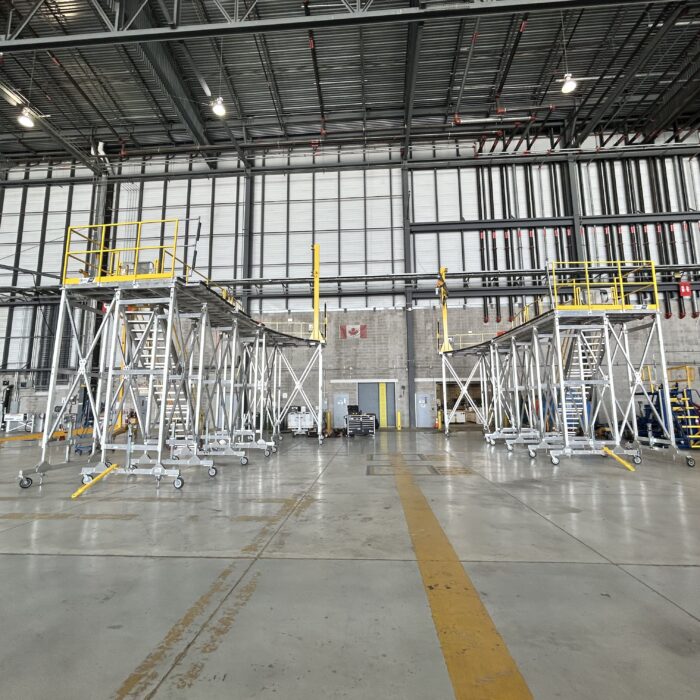

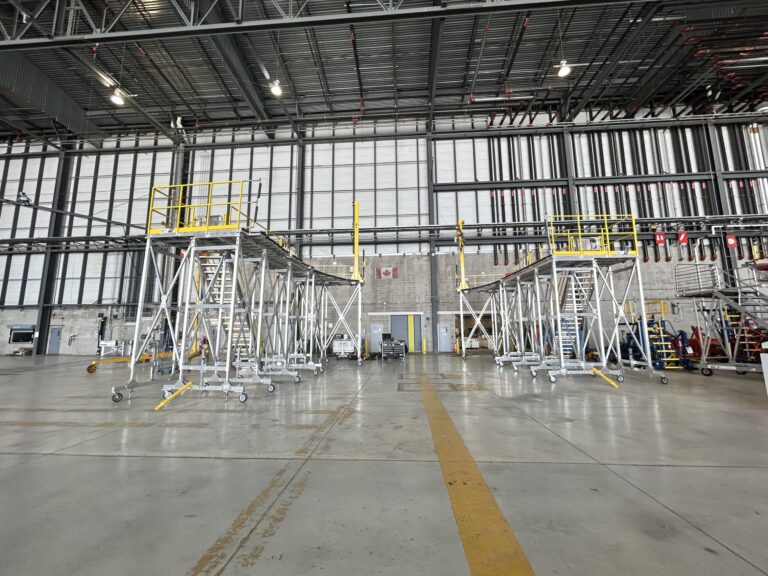

Windshield Change Stand
Windshield Change Stand
- Model #: DF01581-01
- Designed for: Aircraft maintenance (Mobile Work Platform). Adjustable height using hand operated lifting jacks. 24″ of travel is available: MIN Height = 13′-6″ / MAX Height 15′-6″
- Movement: Manual Push/Pull – Capacity: 1,000 lbs – 2 persons per side
- Padding Material: Equipped with Rubber Bumpers all along aircraft access
- Steps Material: Aluminum
- Frame Material: Aluminum
- Finish: Bare Aluminum (Frame & stairs) / Powder Coated Yellow (all hand and guard rails)
- Certifications: BS EN 131-2:2012, BS EN 131-7:2013, & ANSI A92:2020
- Caster Details: Swivel Caster with *” diameter x 2″ wide Twin Polyurethane (70D) wheels on Aluminum Core. 1250 lbs load capacity per caster.

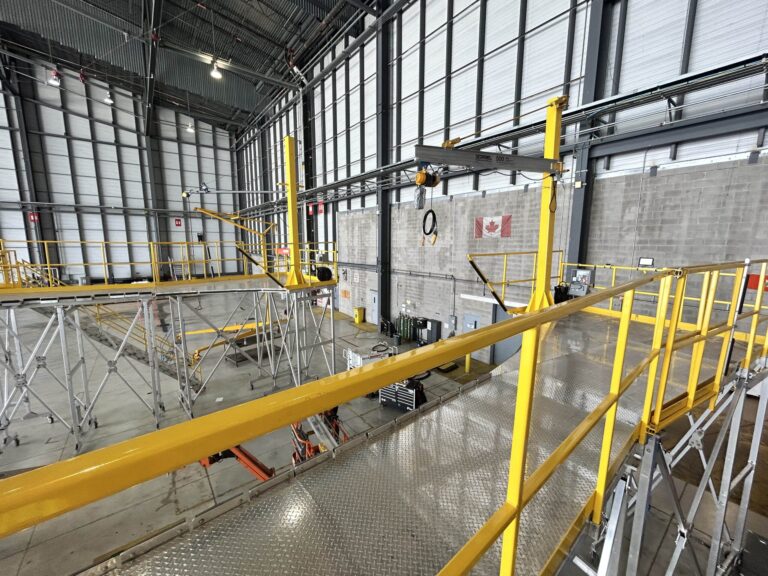

- 250 lbs capacity Jib Crane
- Electric Hoist (1,00 lbs capacity) with pendant control
- Adjustable Lights mounted to handrail
- Retractable hose reel for main air inlet
- Air manifold with quick connects
- 110V outlet box (weatherproof) – 3 Places
- Tool box mounted on Platform Handrail (2 places)
Build Your System
"*" indicates required fields
Fixed Wing Maintenance
Safety in the air starts on the ground
Full fall restraint provisions
Multi-functional design
Customizable to individual operational requirements
Designed and tested in accordance with all safety regulations
Warranty options available
Safe access to maintenance and inspection points
Safe and reliable engineered solution
Durable construction for multiple applications
DESIGN
From inception, through to design, fabrication, and installation, Factory Supply specializes in standard and custom fixed-wing maintenance systems/platforms. Working alongside our valued clients in the Commercial, Military, and Private aircraft sectors, we have been recognized as a leader in quality, innovation, dependability and customer service. Our products are designed to safely access maintenance inspection points and perform painting, assembly, overhaul and repairs.
Our specialized solutions allow maintenance personnel to work both safely and efficiently while protecting the aircraft. Our stands are constructed with premium American materials and products, while exceeding all regulatory requirements, including OSHA and ANSI.
Regulatory and Compliance
Our defining philosophy; “safety in the air, starts on the ground”, highlights our core focus of keeping our clients and their teams safe.
All Factory Supply products are engineered, designed, built and tested in accordance with OSHA and ANSI regulations.
Many of our products have also been tested, and meet or exceed BS EN 131.7, DIN EN 12312-8, EN 1915-1, and include CE certifications.
Built for safety and ease of use
Lightweight and multi-fuctional design, capable of providing a safe solution in a range of applications. Easily access maintenance and inspection points, and hard to reach panels and under-wing areas.
A focus on the finer details
Heavy duty aluminum construction with anti-slip, anti-fatigue ladder steps for easy movement and corrosion-resistant powder coat finish for longevity.
