Wheel Well Access Stands

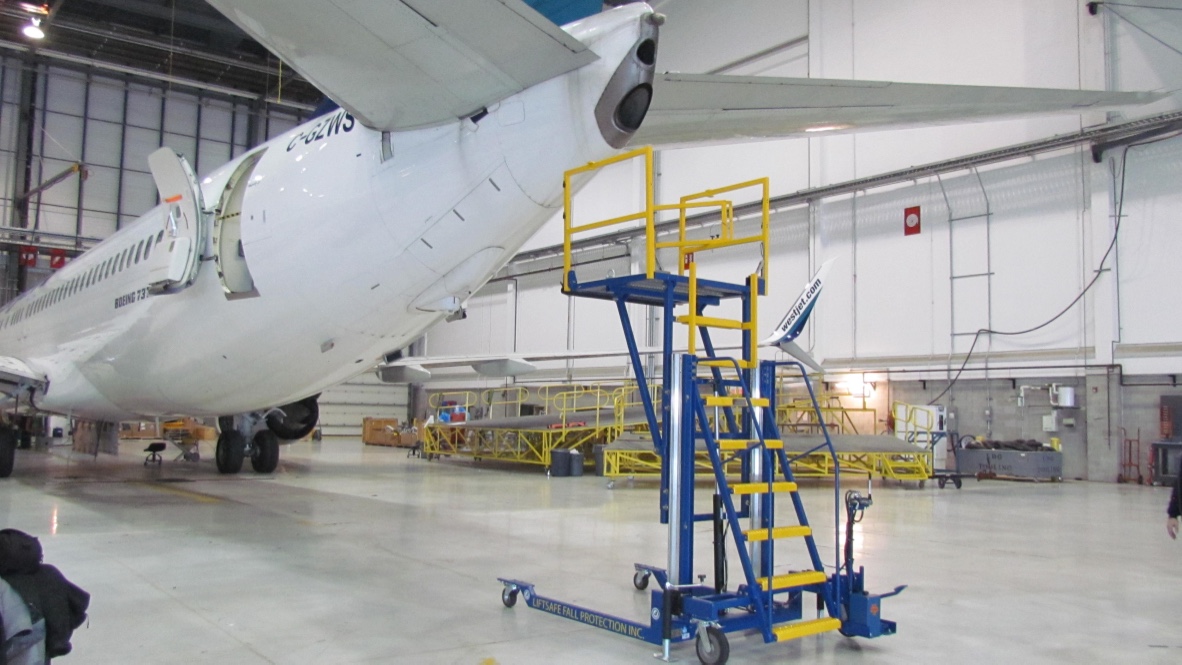

Our wheel well access and maintenance platforms have been built for a variety of aircraft maintenance access points. The reduced position has been tested and is operational on both Airbus and Boeing wide-body aircraft to clear wheel well entrance locations. Telescopic side rails are available as an option to allow safe access to the lower cargo holds in the forward and aft sections. These wheel well platforms have collapsible guardrails and are hydraulically controlled through an ergonomically positioned foot pump. The XP wheel well access stand offers a larger maintenance platform that can comfortably seat two individuals.
Our expert engineers may create unique models based on your specifications. The aircraft platform stand is built and tested to meet the requirements of ANSI-ASC A14.7 and BS EN 131.7, as well as CE certification. Factory Supply aviation access equipment is designed to work with a variety of aircraft and access locations. Please note that our equipment fits the standards of various aircraft models that match the access point specifications of our tested equipment, in addition to the ones listed. Please contact one of our professionals to see if your aircraft qualifies or to discuss customised options.
Wheel Well Access Stands
DF071556-03XP
- Model #: DF071556-03XP
- Designed for: B717, B727, B737, B747, B757, B767, B777, B787, A300, A310, A318, A319, A320 Family, A321, A330, A340, A350, A380, Bombardier CRJ, Lockheed L-1011, DC-10/MD-10/MD-11, E-170, E-190, Douglas DC-8+, DC-9 Super 80/MD-80
- Footprint: 92″ x 105 1/2″ / 233.6 cm x 267.9 cm
- Shipping: 92″ x 80″ x 105 1/2″ x 1,400lbs / 233.6 cm x 203.2 cm x 267.9 x 635 kg
- Height: Height – Low 73″ / 185.4 cm
Height – High 103″/ 261.6 cm - Weight Capacity: 660 lbs / 300 kg
- Material: Ladder – aluminum / Frame – steel
- Finish: Powder coated finish
- Number of users: Two
- Controls: Hydraulic foot pump
- Ladder strokes: 56
- Fall Restraint Anchor Points: Equipped
- Padding Material: Equipped
- Certifications: ANSI-ASC A14.7, BS EN 131.7, CE, DIN EN 12312-8 & EN 1915-1
- Accessories: Air powered pump, custom heights and platform sizes, telescopic rails, tow-bar, utilities package, lowered front “legs” for the 787 main gear
DF071556-03
- Model #: DF071556-03
- Designed for: B717, B727, B737, B747, B757, B767, B777, B787, A300, A310, A318, A319, A320 Family, A321, A330, A340, A350, A380, Bombardier CRJ, Lockheed L-1011, DC-10/MD-10/MD-11, E-170, E-190, Douglas DC-8+, DC-9 Super 80/MD-80
- Footprint: 79 3/4″ x 105 1/2″ / 202.5 cm x 267.9 cm
- Shipping: 79 3/4″ x 80 1/4″ x 105 1/2″ x 1,200lbs / 202.5 cm x 203.8 cm x 267.9 cm x 544.3 kg
- Height: Height – Low 73″ / 185.4 cm
Height – High 103″ / 261.6 cm - Weight Capacity: 660 lbs / 300 kg
- Material: Ladder – aluminum / Frame – steel
- Finish: Powder coated finish
- Number of users: Two
- Controls: Hydraulic foot pump
- Ladder strokes: 56
- Fall Restraint Anchor Points: Equipped
- Padding Material: Equipped
- Certifications: ANSI-ASC A14.7, BS EN 131.7, CE, DIN EN 12312-8 & EN 1915-1
- Accessories: Air powered pump, custom heights and platform sizes, telescopic rails, tow-bar, utilities package, lowered front “legs” for the 787 main gear
- Fall restraint tie points
- Designed to clear wheel well entry points
- Hydraulically actuated foot pump or optional pneumatic pump
- Anti-fatigue ladder steps
- Collapsible guardrails to allow wheel well access
- Optional extension rails for safe cargo access
- 2 year limited warranty on components
- 10 year limited warranty on structure
A300, A310, A318, A319, A320 Family, A321, A330, A340, A350, A380
B717, B727, B737, B747, B757, B767, B777, B787
CRJ
DC-8+, DC-9 Super 80/MD-80
Build Your System
"*" indicates required fields
Fixed Wing Maintenance
Safety in the air starts on the ground
Full fall restraint provisions
Multi-functional design
Customizable to individual operational requirements
Designed and tested in accordance with all safety regulations
Warranty options available
Safe access to maintenance and inspection points
Safe and reliable engineered solution
Durable construction for multiple applications
DESIGN
From inception, through to design, fabrication, and installation; Factory Supply specializes in standard and custom fixed-wing Crew Access Stands. Working alongside our valued clients in the Commercial, Military, and Private Aircraft sectors, we have been recognized as a leader in quality, innovation, dependability and customer service. Our products are designed to safely access maintenance inspection points, perform painting, assembly, overhaul and repairs.
Our specialized solutions allow maintenance personnel to work both safely and efficiently while protecting the aircraft. Our aircraft maintenance equipment is constructed with premium American materials and products, while exceeding all regulatory requirements including OSHA and ANSI.
Regulatory and Compliance
Our defining philosophy; “safety in the air, starts on the ground”, highlights our core focus of keeping our clients and their teams safe.
All Factory Supply products are engineered, designed, built and tested in accordance with OSHA and ANSI regulations.
Many of our products have also been tested, and meet or exceed BS EN 131.7, DIN EN 12312-8, EN 1915-1, and include CE certifications.
Built for safety and ease of use
Many of our crew access platforms are adjustable to allow users to safely access distinct access points of the aircraft using hydraulically actuated and vertically adjustable platforms.
A focus on the finer details
Our crew access stands include specialized features such as anti-fatigue and anti-slip steps, fail-safe hydraulic cylinder locks and castor wheels with brake and swivel locks.
